Latch, Door: Removal

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

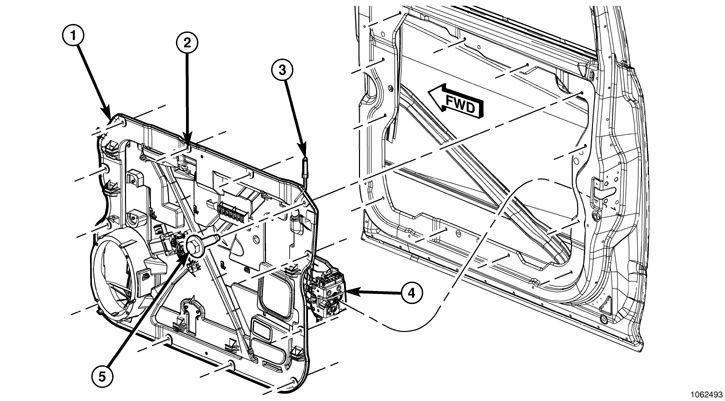

GC0088959Courtesy of CHRYSLER GROUP, LLC
  1. Remove the carrier plate (1). Refer to PLATE, CARRIER, REMOVAL .
  2. Disconnect the door wire harness connector from the door latch (4).
  3. Separate the latch assembly from the latch presenter bracket and remove.
