Glass, Door: Removal

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
GC0088951Courtesy of CHRYSLER GROUP, LLC
  1. Remove the trim panel. Refer to PANEL, DOOR TRIM, REMOVAL .
  2. Remove the door speaker. Refer to SPEAKER, REMOVAL .
  3. Remove the inner belt molding (3).
    GC0088952Courtesy of CHRYSLER GROUP, LLC
  4. Install the window switch if required and lower the glass (1) down in the door to position the glass attachment clips (2) for access through the speaker opening and the service access plug.
  5. Separate the glass clips (2) from the regulator lift plates (3 and 4).

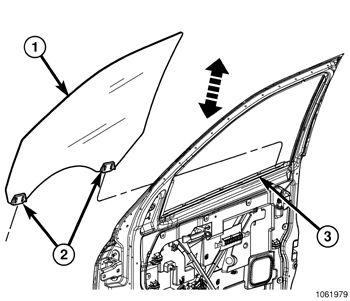

    GC0088953Courtesy of CHRYSLER GROUP, LLC
  6. Rotate the top of the glass (1) forward in the door to release the glass from the run channels.
  7. Remove the door glass (1) from the door (3) and separate the clips (2) if necessary.
