Flag, Mirror: Removal

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

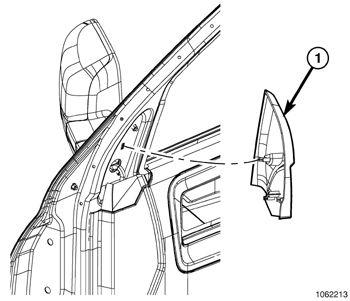

GC0088950Courtesy of CHRYSLER GROUP, LLC
  1. Using trim stick (special tool #C-4755, Trim Stick) or equivalent, remove the mirror flag (1).
