Section 1564 (Body - Interior & Exterior - 2500 Hd): Exterior: Nameplate: Removal
WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

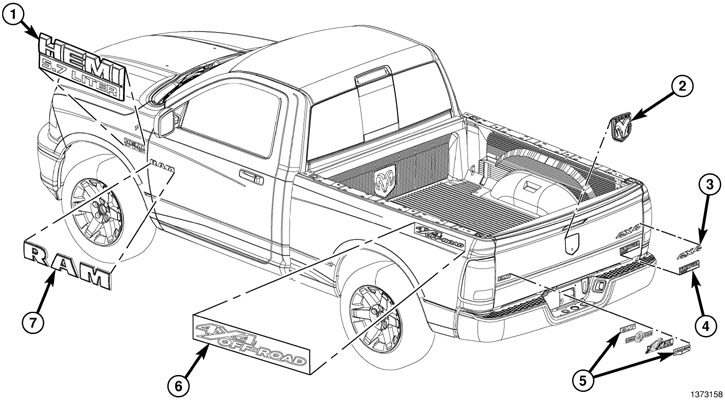

| 1 - "HEMI 5.7 LITER" |
| 2 - "RAM HEAD MEDALLION" |
| 3 - "4X4" |
| 4 - "FLEX FUEL E85 ETHANOL" |
| 5 - "SLT", "LONE STAR", "BIG HORN", "LARAMIE" |
| 6 - "TRX4 OFF-ROAD" |
| 7- "RAM" |
NOTE:
Standard Cab model shown in the illustration. Exterior name plates and decals for all other cab models are similar. Exterior name plate and decal usage vary by model.
- As a guide for installation, apply a length of masking tape on the body, parallel to the top edge and, to one end of the name plate or decal being removed.CAUTION:
Do not exceed 52° C (120° F) when heating name plates, decals or body panels. Failure to follow this caution may result in damage to the name plates, decals or the vehicle paint finish.
- If the temperature is below 21° C (70° F), warm the name plate or decal with a heat lamp or heat gun.NOTE:
The exterior name plates are attached to the body with adhesive tape.
- Using a trim stick (special tool #C-4755, Trim Stick) or equivalent, carefully remove the name plate or decal from the body panel, as necessary.
