Molding, Rear Wheel Opening: Removal

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

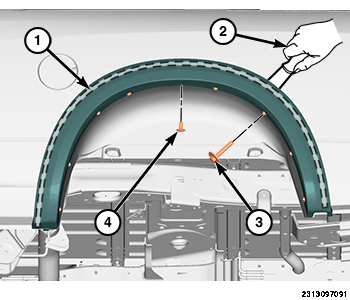

GC0173531Courtesy of CHRYSLER GROUP, LLC
  1. Remove the eight fender flare screws (3).
    NOTE:

    Make sure the push-pin (4) is completely removed.

  2. Cut off the alignment push-pin (1) located in the middle of the fender flare.
  3. Use a plastic putty knife (2) or equivalent, along the edges of the flare to cut the two sided tape (1).

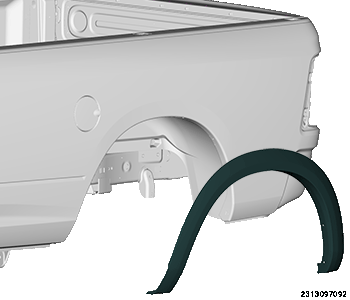

    GC0173457Courtesy of CHRYSLER GROUP, LLC
  4. Pull the fender flare off, starting at the bottom rear of the fender flare.
    NOTE:

    Make sure all adhesive tape is removed.

  5. Remove the adhesive tape from the fender using 3M General Purpose Adhesive Cleaner or equivalent.
