Flare Extension Molding

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

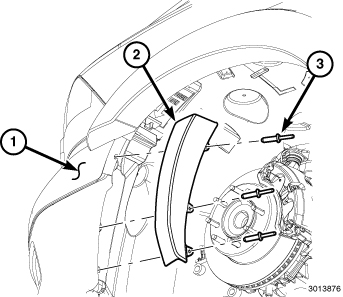

GC0143876Courtesy of CHRYSLER GROUP, LLC
  1. Remove the rivets (3).
  2. Remove the flare extension (2) from the front bumper assembly (1).
