Mirror, Outside Rearview: Removal
WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the door trim panel as necessary to gain access to the mirror. Refer to PANEL, DOOR TRIM, REMOVAL .

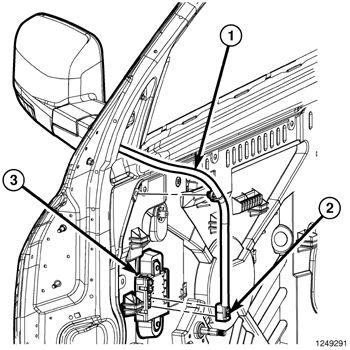

- If equipped, disconnect the wire harness connector (2) from the door module (3) and separate the support clip.

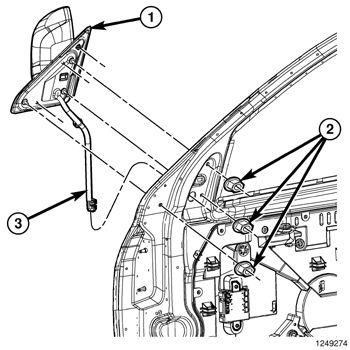

- Remove the three nuts (2) that secure the mirror to the door and carefully remove the mirror.
