Isolator, Body: Removal
WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of CHRYSLER GROUP, LLC
|
NOTE:
Quad and crew cab model shown in the illustration. Body isolators for regular and mega cab models are similar.

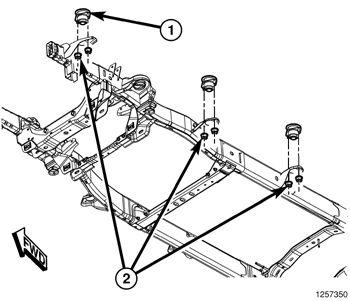

- Loosen all cab to frame mounting bolts (2) (six regular cab, eight crew cab and 10 mega cab).
 Courtesy of CHRYSLER GROUP, LLC
|

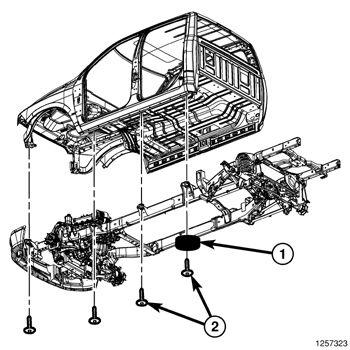

- Using a suitable lifting device, lift the body to gain access to the isolators (1).
- Remove the nuts (2) and remove the isolators as necessary.
