Ram Box Lid Springs
WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the Ram Box. Refer to BOX, PICKUP, REMOVAL .

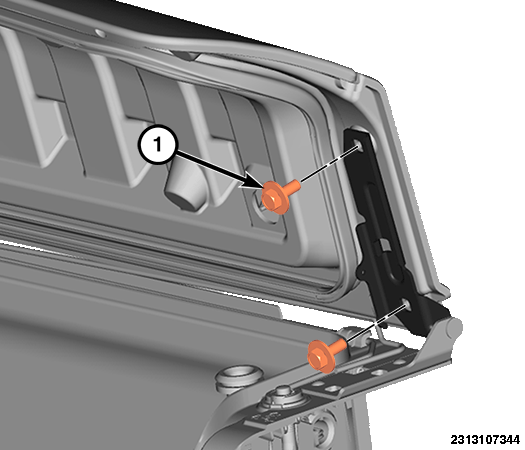

- Remove the two hinge bolts (1) from the hinge and repeat on the opposite side.

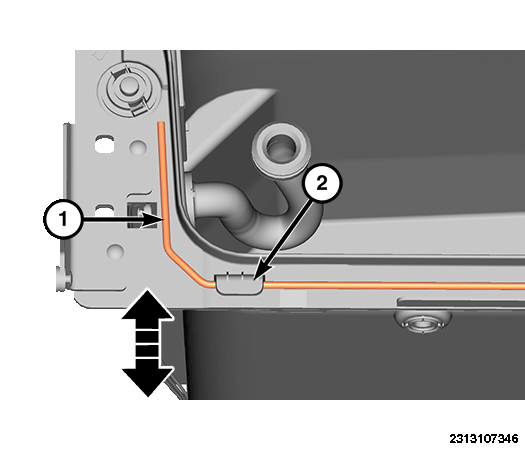

- Release the springs (2) from the lid hinges (1).
- Separate the lid from the hinges enough to gain access to the lid springs.

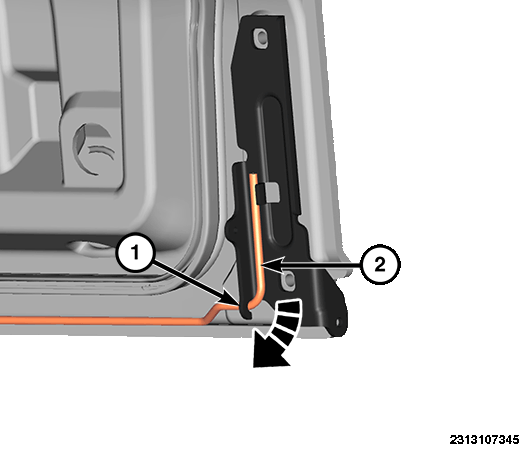

- Remove the springs (1) from the retaining tabs (2) and remove the springs.
