Cover, Tailgate: Removal

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

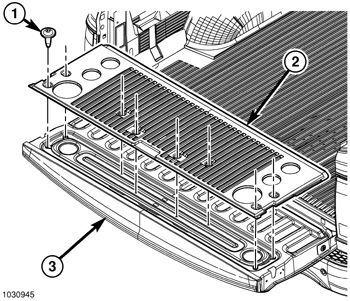

GC0088936Courtesy of CHRYSLER GROUP, LLC
  1. Open the tailgate (3).
  2. Remove the screws (1) and remove the tailgate liner (2), if equipped.
    GC0087466Courtesy of CHRYSLER GROUP, LLC
  3. Remove the bolts (1) that secure the tailgate cover (2) to the inside of the tailgate and remove the cover.
