Cover, Tailgate: Installation
WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

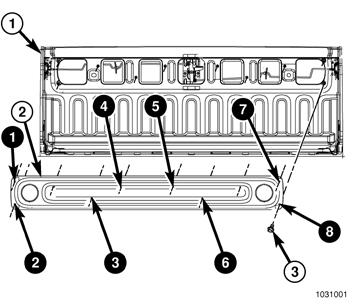

- For vehicles without a tailgate liner, install the cover (2) onto the tailgate (1) and install the bolts (3).
- Tighten the bolts using the sequence shown in the illustration.
- On vehicles with a tailgate liner, position the tailgate cover onto the inside of the tailgate (3).
- Install the liner (2) onto the tailgate.
- Install the screws (1) that secure the tailgate cover to the tailgate.
- Tighten the screws using the sequence shown in the illustration.
