Pulley, Power Steering Pump: Removal
WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

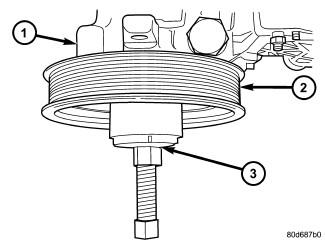

| 1 - POWER STEERING PUMP |
| 2 - PULLEY |
| 3 - POWER STEERING PULLEY REMOVAL TOOL |
CAUTION:
Do not reuse the old power steering pump pulley it is not intended for reuse. A new pulley must be installed if removed.
- Remove the power steering pump assembly (1). Refer to PUMP, REMOVAL .
- Remove the pulley (2) from the pump using (OTC® 7185) power steering pulley removal tool or equivalent (3).
