Pulley, Power Steering Pump: Installation
WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

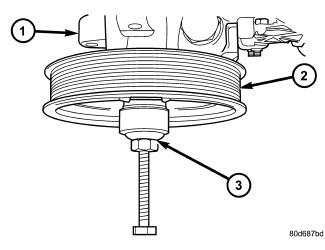

| 1 - POWER STEERING PUMP |
| 2 - PULLEY |
| 3 - POWER STEERING PUMP PULLEY INSTALLATION TOOL |
CAUTION:
Do not reuse the old power steering pump pulley it is not intended for reuse. A new pulley must be installed if removed.
- Replace the pulley (2) if it's bent, cracked, or loose.
- Install the pulley (2) on the pump (1) using (OTC® 7771) power steering pulley installation tool or equivalent (3) making sure it is flush with the end of the shaft. Ensure the tool and pulley remain aligned with the pump shaft.
- Install the power steering pump assembly. Refer to PUMP, INSTALLATION .
- Run engine until warm (5 min.) and note any belt chirp. If chirp exists, move pulley outward approximately 0.5 mm (0.020 in.). If noise increases, press on 1.0 mm (0.040 in.). Be careful that pulley does not contact mounting bolts.
