Section 1562 (Steering System - 2500 Hd): Pump: Operation
WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

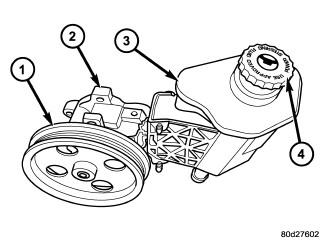

| 1 - 3.7L AND 4.7L (6 GROOVE) PHENOLIC (PLASTIC TYPE) PULLEY |
| 1 - 5.7L AND 8.0L (7 GROOVE) PHENOLIC (PLASTIC TYPE) PULLEY |
| 2 - PUMP ASSEMBLY |
| 3 - RESERVOIR |
| 4 - CAP |
Hydraulic pressure is provided for the power steering gear by the belt driven power steering pump (2) . The power steering pumps are constant flow rate and displacement, vane-type pumps.
