Cooler, Power Steering: Installation: Gas
WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
- Position the fluid cooler (2) to the vehicle.
- Install the mounting bracket bolts (1) securing the fluid cooler (2) to the brace.
- Install and clamp the return and supply hoses to the power steering fluid cooler lines (3).

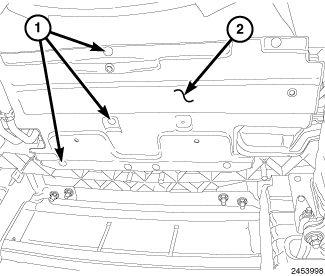

- If equipped, position the lower engine splash shield (2) and install the eight retainers (1).
- Remove the support and lower the vehicle.
- Install the grille. Refer to GRILLE, INSTALLATION .
- Refill the power steering fluid. Refer to PUMP, STANDARD PROCEDURE .
