Arm, Pitman, Link And Coil: Removal

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

All views are typical.

GC0108898Courtesy of CHRYSLER GROUP, LLC
  1. Remove the track bar bolt (4) and lower the track bar (5) to allow enough clearance.

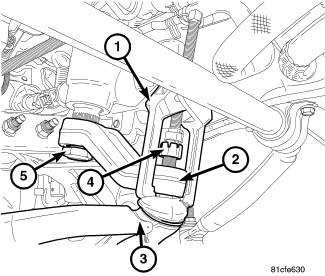

    GC0108916Courtesy of CHRYSLER GROUP, LLC
  2. Remove the drag link nut (4) from the pitman arm (2).
  3. Install puller C3894-A (1) or equivalent and separate the drag link (3) from the pitman arm (2).
  4. Mark the pitman arm (2) and shaft positions for installation reference. Unstake the nut (5) and the remove from the pitman arm (2).

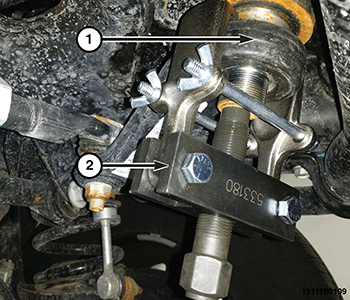

    GC0174015Courtesy of CHRYSLER GROUP, LLC
  5. Remove the pitman arm (1) with a suitable pitman arm puller tool (2).
