Diagnostic Test

WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

TEST FOR INTERMITTENT CONDITION
NOTE:
Diagnose and repair all active Bus related Diagnostic Trouble Codes (DTCs) including Lost Communication DTCs before diagnosing this DTC.
1. Turn the ignition on.
2. Using a scan tool, record and erase DTCs.
3. Turn the ignition off.
4. Start the engine and let it run.
5. Using a scan tool, read DTCs.
  Is the DTC active?

  Yes
  - Go To 2.
  No
  - The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors. Look for chafed, pierced, pinched, or partially broken wires and broken, bent, pushed out, spread, corroded, or contaminated terminals. Attempt to reproduce condition by rotating the steering wheel.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
CHECK FOR AN OPEN OR SHORTED HSW TEMPERATURE SENSOR

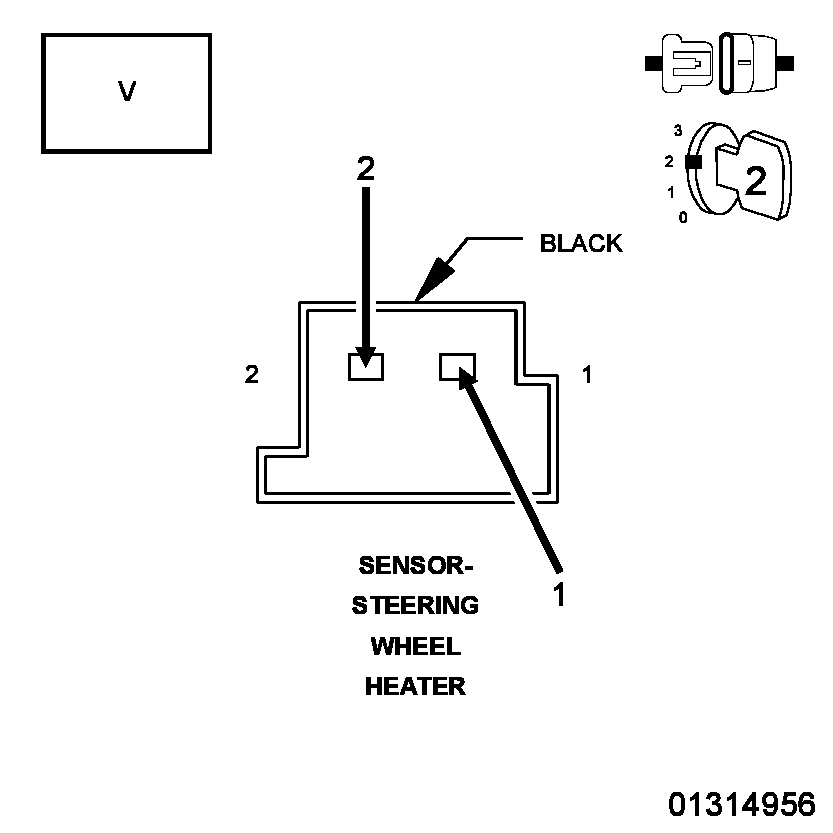

Fig 1: Checking HSW Temperature Sensor For An Open Or Short
Courtesy of CHRYSLER GROUP, LLC

WARNING:
Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
1. Remove the Driver Airbag in accordance with the Service Information.
2. Disconnect the Steering Wheel Heater Sensor connector.
  NOTE:
  Before proceeding, thoroughly inspect the wiring harness and connectors between the HSW and the Right Steering Wheel Switch. Look for chafed, pierced, pinched, or partially broken wires and broken, bent, pushed out, spread, corroded, or contaminated terminals.

  WARNING:
  Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
3. Measure the Voltage between the (G110) HSW Temperature Sensor Signal circuit and the (G907) EVIC MUX Return circuit at the Steering Wheel Heater Sensor connector.
  Is the Voltage above 3.5-volts?

  Yes
  - Replace the Heated Steering Wheel (HSW) in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
  No
  - Go To 3.
CHECK (G110) HSW TEMPERATURE SENSOR SIGNAL CIRCUIT FOR AN OPEN

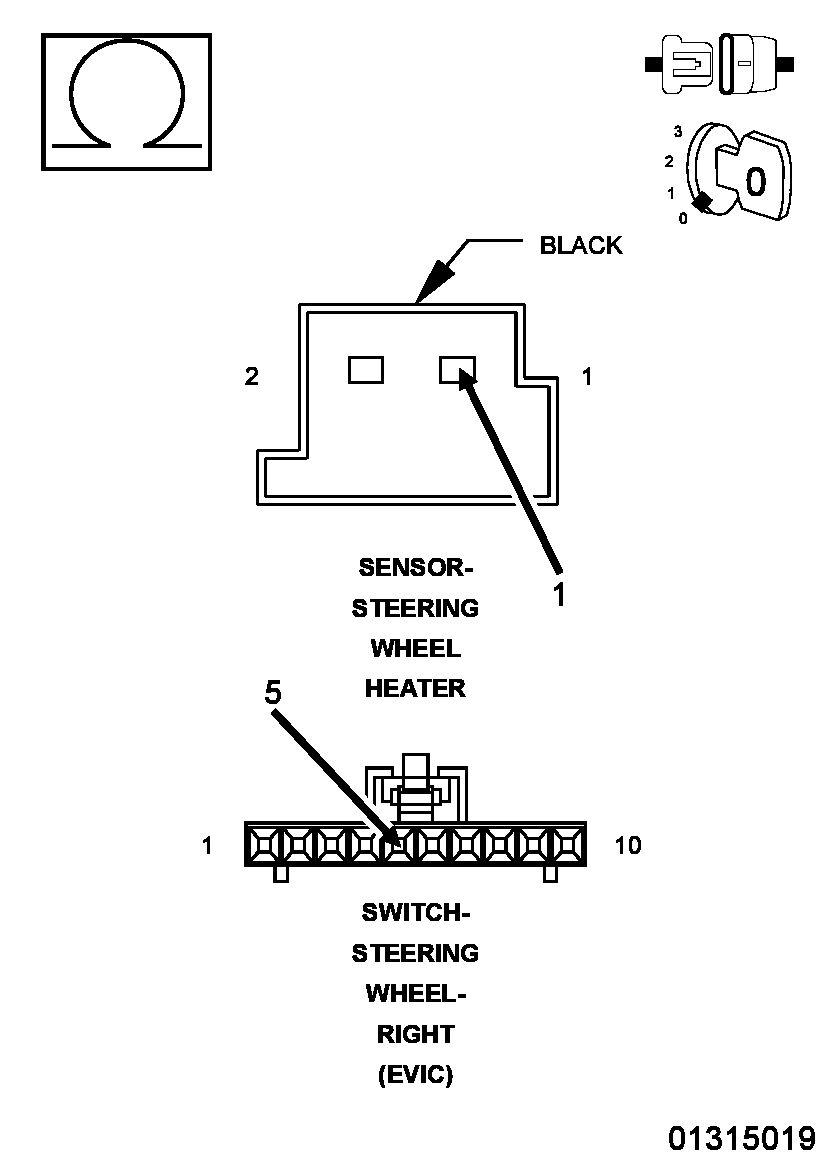

Fig 2: Checking HSW Temperature Sensor Signal Circuit For An Open
Courtesy of CHRYSLER GROUP, LLC
1. Turn the ignition off.
2. Disconnect the Right Steering Wheel Switch connector.
  NOTE:
  Check connectors. Clean and repair as necessary.
3. Measure the resistance of the (G110) HSW Temperature Sensor Signal circuit between the Steering Wheel Heater Sensor connector and the Right Steering Wheel Switch connector.
  Is the resistance below 5.0 Ohms?

  Yes
  - Go To 4.
  Yes
  - Repair the (G110) HSW Temperature Sensor Signal circuit for an open.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
CHECK (G110) HSW TEMPERATURE SENSOR SIGNAL CIRCUIT FOR A SHORT TO GROUND

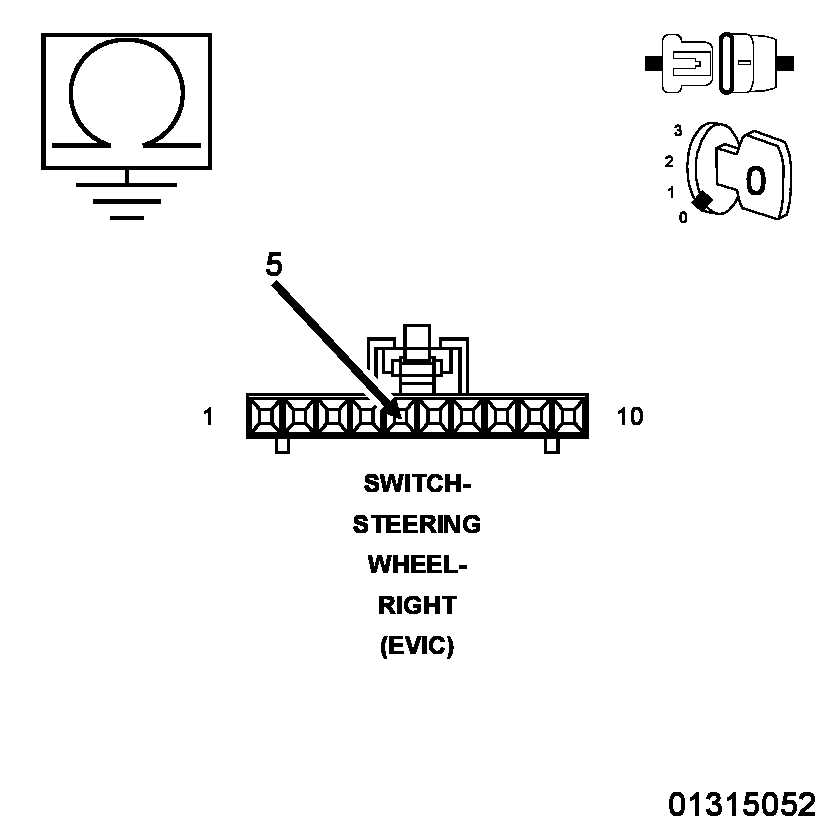

Fig 3: Checking HSW Temperature Sensor Signal Circuit For Short To Ground
Courtesy of CHRYSLER GROUP, LLC
1. Measure the resistance of the (G110) HSW Temperature Sensor Signal circuit between ground and the Right Steering Wheel Switch connector.
  Is the resistance below 10K Ohms?

  Yes
  - Repair the (G110) HSW Temperature Sensor Signal circuit for a short to ground.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
  No
  - Go To 5.
CHECK (G110) HSW TEMPERATURE SENSOR SIGNAL CIRCUIT FOR A SHORT TO (G902) SWITCH MUX RETURN CIRCUIT, (G907) EVIC MUX RETURN CIRCUIT, AND (Z911) GROUND CIRCUIT

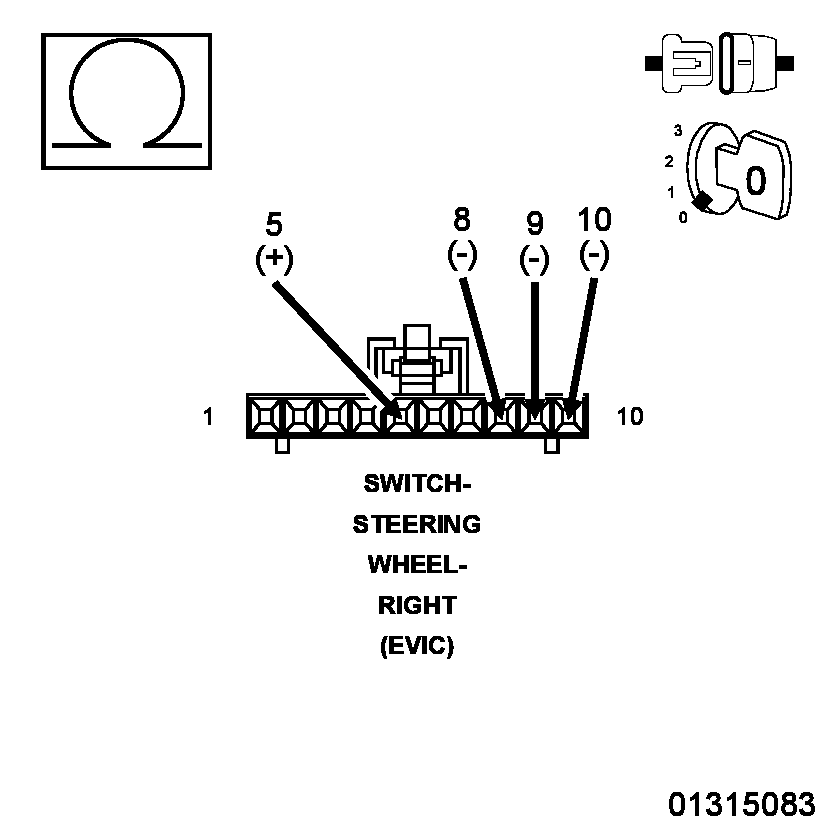

Fig 4: Checking HSW Temperature Sensor Signal Circuit For A Short To Switch MUX Return Circuit, EVIC MUX Return Circuit, & Ground Circuit
Courtesy of CHRYSLER GROUP, LLC
1. Measure the resistance between the (G110) HSW Temperature Sensor Signal circuit and the (G902) Switch MUX Return circuit at the Right Steering Wheel Switch connector.
2. Measure the resistance between the (G110) HSW Temperature Sensor Signal circuit and the (G907) EVIC MUX Return circuit at the Right Steering Wheel Switch connector.
3. Measure the resistance between the (G110) HSW Temperature Sensor Signal circuit and the (Z911) Ground circuit at the Right Steering Wheel Switch connector.
  Is the resistance below 10K Ohms between the (G110) HSW Temperature Sensor Signal circuit and any of the other circuits?

  Yes
  - Repair all circuits with a resistance below 10K Ohms for a short to the (G110) HSW Temperature Sensor Signal circuit.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
  No
  - Go To 6.
CHECK (G907) EVIC MUX RETURN CIRCUIT FOR AN OPEN

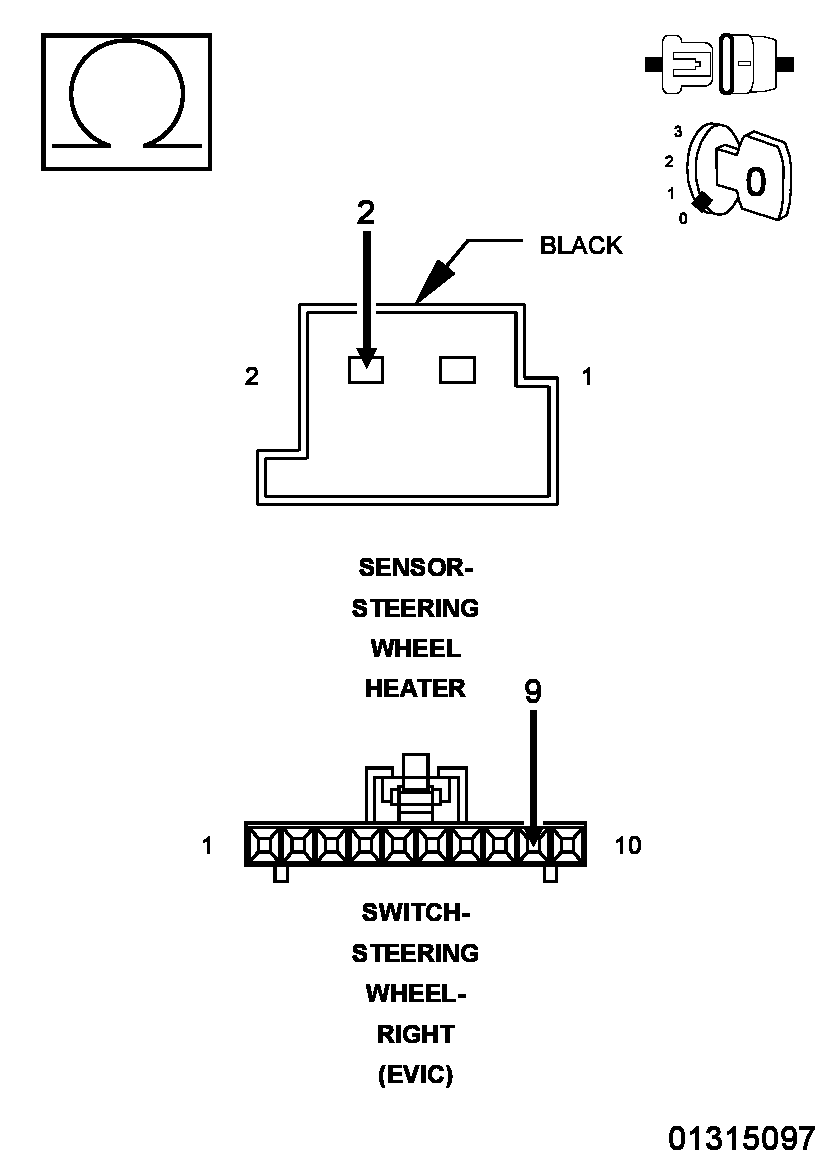

Fig 5: Checking EVIC MUX Return Circuit For An Open
Courtesy of CHRYSLER GROUP, LLC
1. Measure the resistance of the (G907) EVIC MUX Return circuit between the Steering Wheel Heater Sensor connector and the Right Steering Wheel Switch connector.
  Is the resistance below 5.0 Ohms?

  Yes
  - Go To 7.
  No
  - Repair the (G907) EVIC MUX Return circuit for an open.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
CHECK FOR AN OPEN OR SHORTED RIGHT STEERING WHEEL SWITCH
1. Replace the Right Steering Wheel Switch in accordance with the Service Information.
2. Reconnect the Steering Wheel Heater Sensor connector.
3. Turn the ignition on.
4. Using a scan tool, erase DTCs.
5. Turn the ignition off.
6. Start the engine and let it run.
7. Using a scan tool, read DTCs.
  Is the DTC active?

  Yes
  - Replace the Steering Control Module (SCM) in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
  No
  - Test complete.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
