Diagnostic Test

WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

TEST FOR INTERMITTENT CONDITION
NOTE:
Make sure the battery is fully charged and the charging system is operating properly before proceeding.
1. Turn the ignition on.
2. Using a scan tool, record and erase Diagnostic Trouble Codes (DTCs).
3. Turn the ignition off.
4. Start the engine and let it run.
5. Using a scan tool, read DTCs.
  Is the DTC active?

  Yes
  - Go To 2.
  No
  - The conditions that caused this code to set are not present at this time. Verify seat harness is routed correctly to the HSM. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors. Look for chafed, pierced, pinched, or partially broken wires and broken, bent, pushed out, spread, corroded, or contaminated terminals. Attempt to reproduce condition by adjusting the seat.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
CHECK TIPM FUSE
1. Using a 12-volt test light connected to ground, check for power on both sides of TIPM Fuse M9.
  Choose the applicable result?

  No Power To Fuse
  - Replace the Totally Integrated Power Module (TIPM) in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
  Fuse Open
  - Go To 3.
  Fuse Ok
  - Go To 6.
REPLACE AND RECHECK TIPM FUSE M9
1. Turn the ignition off.
2. Install a new TIPM Fuse.
3. Turn the ignition on.
4. Using a scan tool, erase DTCs.
5. Turn the ignition off.
6. Start the engine and let it run.
7. Operate each of the Heated Seats and the HSW, if equipped.
8. Inspect TIPM Fuse.
  Is the fuse open?

  Yes
  - Go To 4.
  No
  - Using the wiring diagram/schematic as a guide, inspect the wiring and connectors. Verify seat harness is routed correctly. Look for chafed, pierced, pinched, or partially broken wires and broken, bent, pushed out, spread, corroded, or contaminated terminals. Attempt to reproduce condition by adjusting the seat.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
CHECK (F931) FUSED IGNITION RUN CONTROL OUTPUT CIRCUIT INSIDE TIPM FOR SHORT TO GROUND
1. If not done previously, turn the ignition off.
2. Remove TIPM Fuse M9.
3. Disconnect the TIPM C6 harness connector.
  NOTE:
  Check connectors. Clean and repair as necessary.
4. Measure the resistance of the (F931) Fused Ignition Run Control Output circuit between ground and the TIPM Fuse M9 (output side) connector.
  Is the resistance below 10K Ohms?

  Yes
  - Replace the Totally Integrated Power Module (TIPM) and Fuse M9 in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
  No
  - Go To 5.

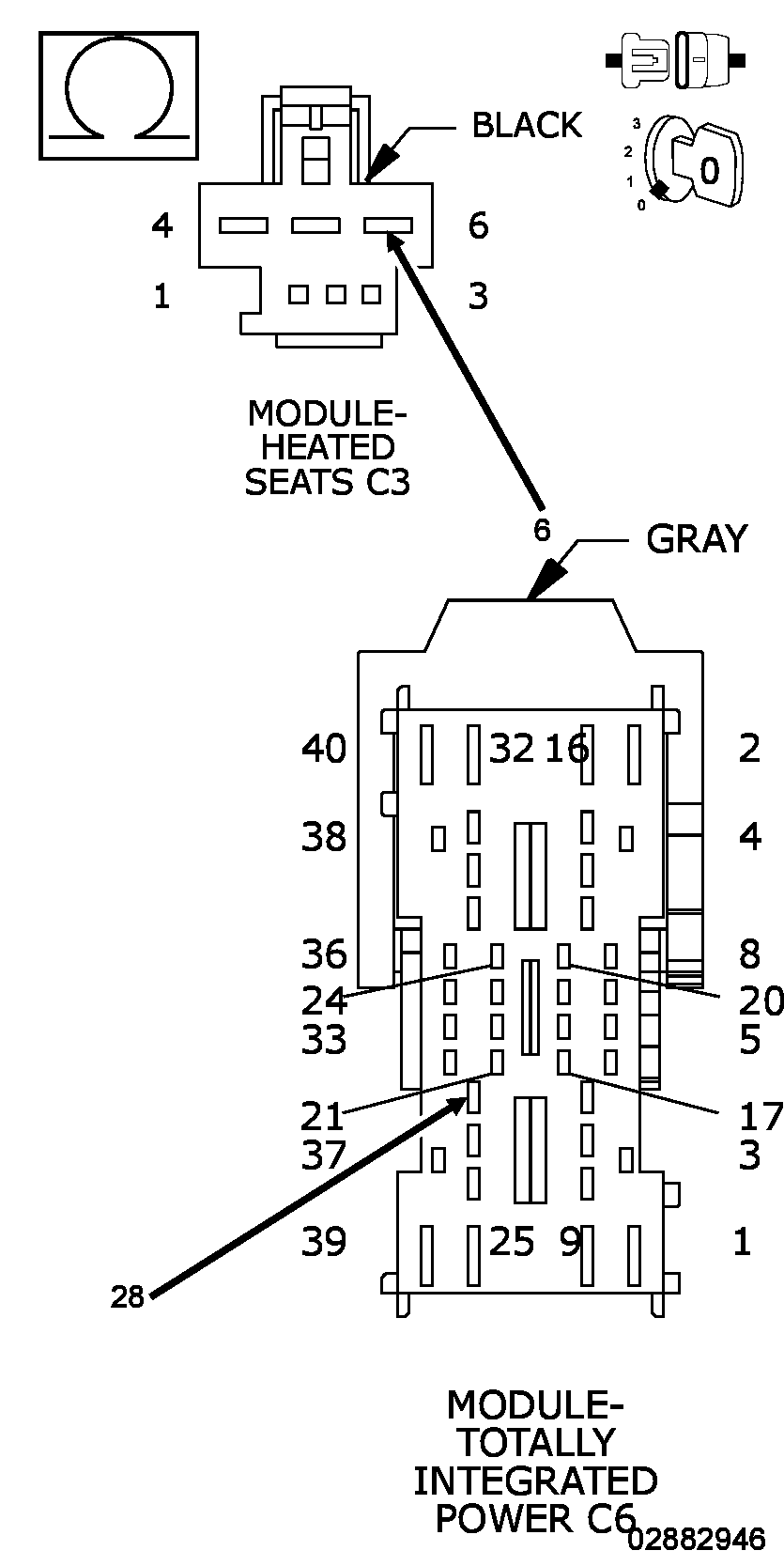

CHECK (F931) FUSED IGNITION RUN CONTROL OUTPUT CIRCUIT FOR A SHORT TO GROUND BETWEEN TIPM AND HSM

Fig 1: Checking Fused Ignition Run Control Output Circuit For A Short To Ground Between TIPM & HSM
Courtesy of CHRYSLER GROUP, LLC
1. Disconnect the HSM C3 harness connector.
2. Disconnect the HSM C4 harness connector, if equipped.
  NOTE:
  Check connectors. Clean and repair as necessary.
3. Measure the resistance of the (F931) Fused Ignition Run Control Output circuit between ground and the TIPM C6 harness connector.
  Is the resistance below 10K Ohms?

  Yes
  - Repair the (F931) Fused Ignition Run Control Output circuit for a short to ground. Replace Fuse M9 in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
  No
  - Replace the Heated Seat Module (HSM) and Fuse M9 in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .

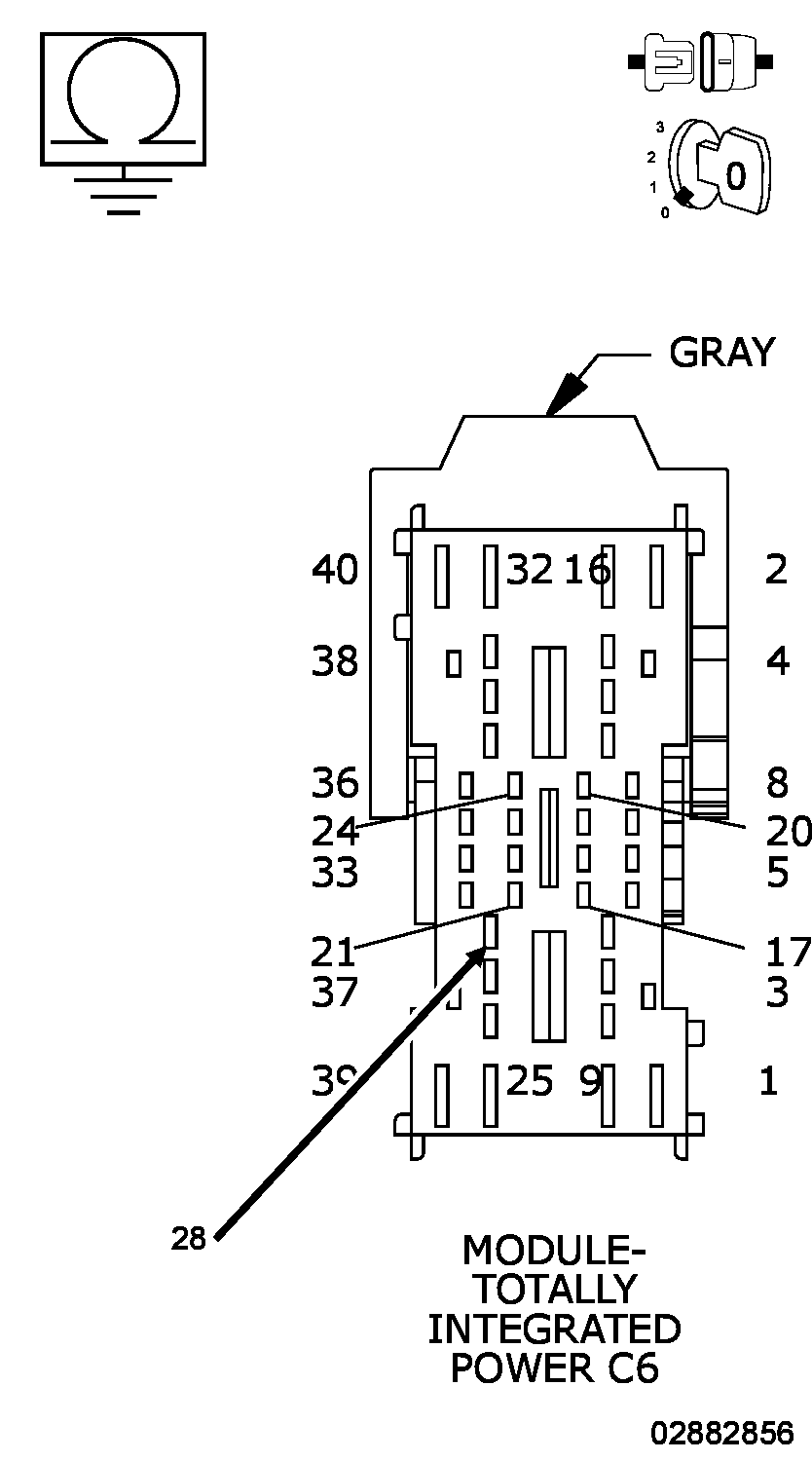

CHECK (F931) FUSED IGNITION RUN CONTROL OUTPUT CIRCUIT INSIDE TIPM FOR AN OPEN

Fig 2: Checking Fused Ignition Run Control Output Circuit Inside TIPM For An Open
Courtesy of CHRYSLER GROUP, LLC

NOTE:
TIPM C6 harness connector shown in illustration. Mirror image for TIPM C6 component side connector.
1. If not done previously, turn the ignition off.
2. Remove TIPM Fuse M9.
  NOTE:
  Check connectors. Clean and repair as necessary.
3. Measure the resistance of the (F931) Fused Ignition Run Control Output circuit between the TIPM Fuse M9 (output side) connector and the TIPM C6 (component side) connector.
  NOTE:
  The graphic shows the connector end. Measure at the component side of the TIPM.

  Is the resistance below 5.0 Ohms?

  Yes
  - Go To 7.
  No
  - Replace the Totally Integrated Power Module (TIPM) in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .

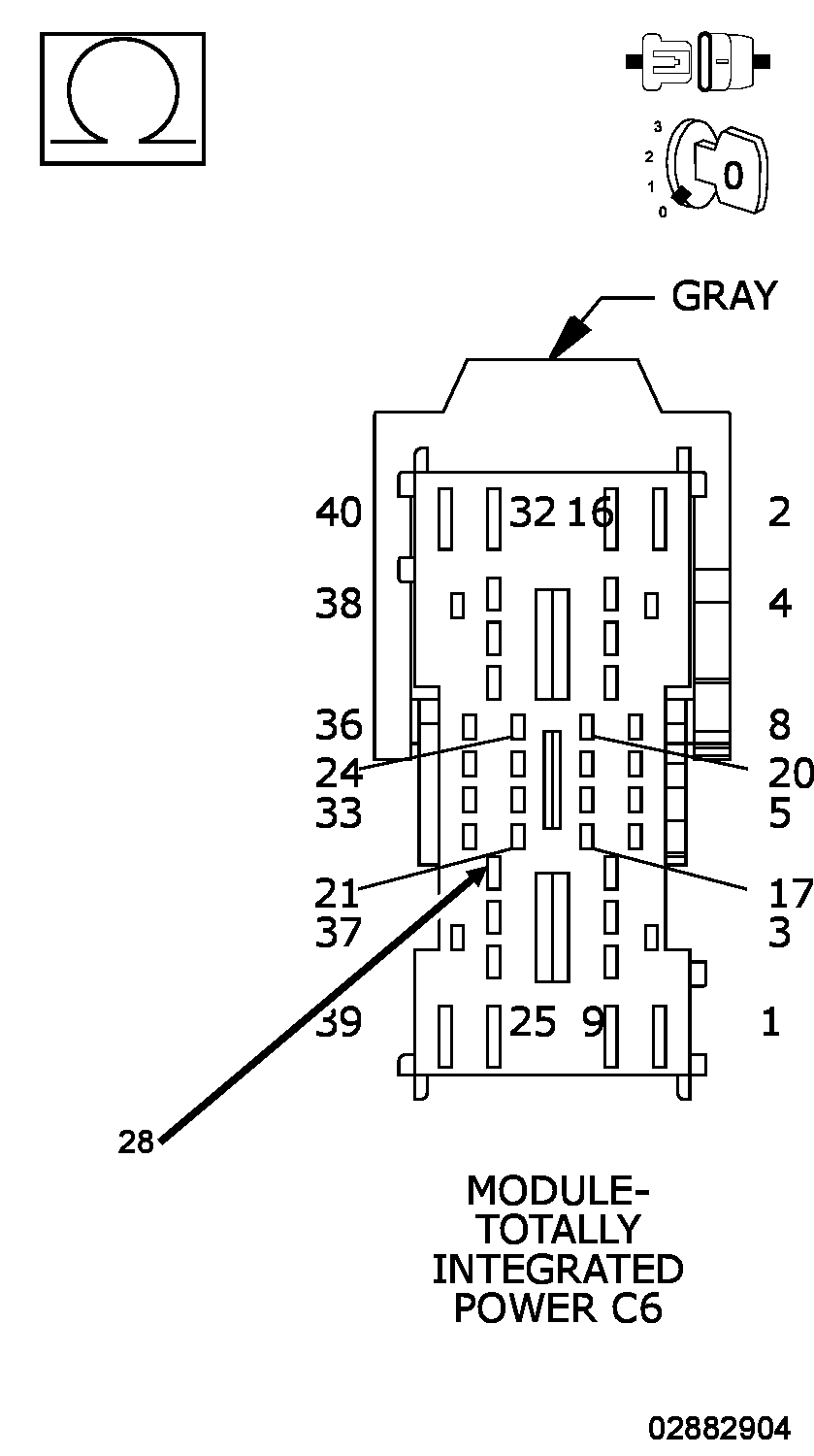

CHECK (F931) FUSED IGNITION RUN CONTROL OUTPUT CIRCUIT FOR AN OPEN BETWEEN TIPM AND HSM

Fig 3: Checking Fused Ignition Run Control Output Circuit For An Open Between TIPM & HSM
Courtesy of CHRYSLER GROUP, LLC
1. Disconnect the HSM C3 harness connector.
  NOTE:
  Check connectors. Clean and repair as necessary.
2. Measure the resistance of the (F931) Fused Ignition Run Control Output circuit between the TIPM C6 harness connector and the HSM C3 harness connector.
  Is the resistance below 5.0 Ohms?

  Yes
  - Replace the Heated Seat Module (HSM) in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
  No
  - Repair the (F931) Fused Ignition Run Control Output circuit for an open.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
