Switch, Heated Seat: Removal: Front

WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

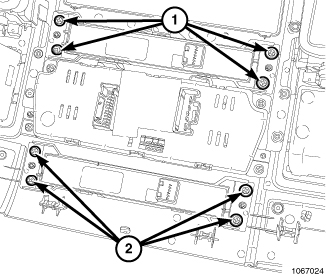

Fig 1: Switch Pod Fasteners
GC0087598Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the battery negative cable.
  2. Remove the instrument panel center bezel. Refer to BEZEL, INSTRUMENT PANEL, CENTER, REMOVAL .
  3. Disconnect the lower switch pod electrical connector.
  4. Remove the lower switch pod fasteners (2) from the center bezel.
  5. Remove the switch pod from the center bezel.
