Switch, Heated Seat: Installation: Rear
WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
- Install the 2nd row heated seat switch assembly into the floor console rear trim panel. Push the switch firmly into the trim panel until the retaining tabs are fully seated.

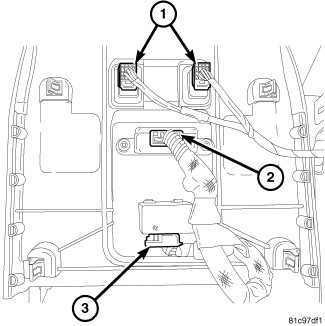

- If equipped, connect the 2nd row heated seat switches (1), 115 Volt power outlet (3) and the auxiliary audio jacks (2) electrical connectors to the floor console rear trim panel.

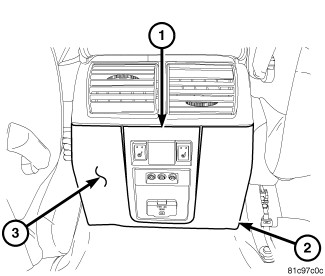

- Align the trim panel (3) to the console and insert the bottom tabs into the mounting slots.
- Tilt the upper edge of the trim panel (1) forward and apply hand pressure to seat all retaining clips.
- Connect the battery negative cable.
- Verify 2nd row heated seat system operation.
