Receiver, Wireless Ignition Node: Installation: Installation
WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
- Connect the WIN electrical connector.
- If equipped, connect the antenna connector to the WIN.

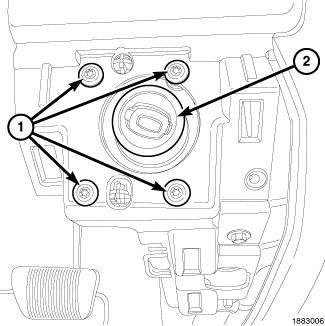

- Install the WIN (2) into the to instrument panel.
- Install the steering column cover opening. Refer to COVER, STEERING COLUMN OPENING, INSTALLATION .
- Connect the negative battery cable.
- Program the WIN following the Module/Programming Order Replacement Guide and Module Programming procedures. Refer to STANDARD PROCEDURE .
