CHECK FOR AN INTERMITTENT CONDITION
1. Turn the ignition on and open one of the front doors.
  NOTE:
  A front door must remain open whenever checking or erasing Amplifier DTC's.
2. With the scan tool, record and erase the Amplifier DTC's.
3. Cycle the ignition switch from on to off, wait five seconds and then back to on.
4. Turn the Radio on and set the volume to 20.
5. Adjust the speakers to the front and center.
6. With the scan tool, read the active Amplifier DTC's.
  Does the scan tool display active: B1485-CHANNEL 8 AUDIO SPEAKER OUTPUT CIRCUIT HIGH?

  Yes
  - Go To 2.
  No
  - Test complete, the condition or conditions that originally set this DTC are not present at this time. Using the wiring diagrams as a guide, check all related splices and connectors for signs of water intrusion, corrosion, pushed out or bent terminals and correct pin tension.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
CHECK FOR VOLTAGE ON THE (X200) AMPLIFIED CENTER I/P SPEAKER (+) CIRCUIT

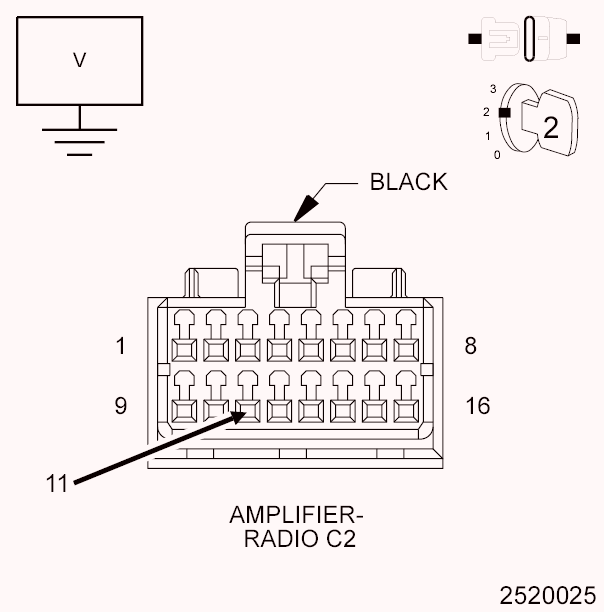

Fig 1: Measuring Voltage On The Amplified Center I/P Speaker (+) Circuit
Courtesy of CHRYSLER GROUP, LLC
1. Turn the ignition off.
2. Disconnect the Amplifier C2 harness connector.
3. Disconnect the Center I/P Speaker harness connector.
4. Turn the ignition on.
5. Measure for voltage between the (X200) Amplified Center I/P Speaker (+) circuit and ground.
  Is there any voltage present?

  Yes
  - Repair the (X200) Amplified Center I/P Speaker (+) circuit for a short to voltage.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
  No
  - Go To 3.
CHECK FOR VOLTAGE ON THE (X290) AMPLIFIED CENTER I/P SPEAKER (-) CIRCUIT

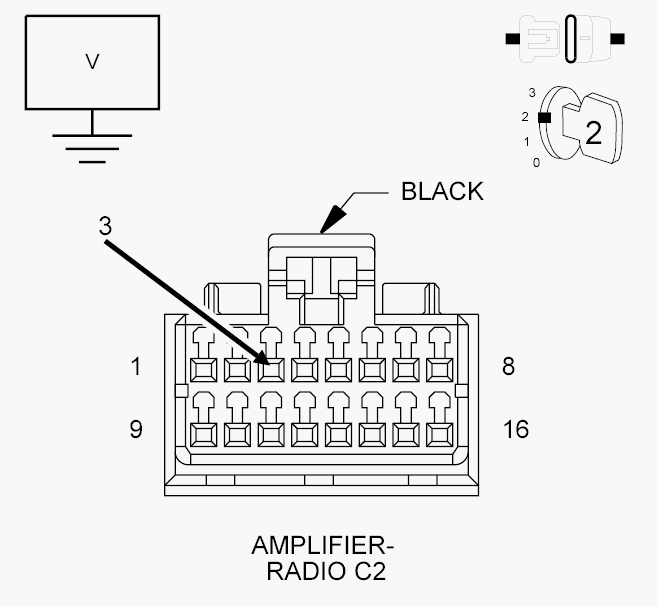

Fig 2: Measuring Voltage On Amplified Center I/P Speaker (-) Circuit
Courtesy of CHRYSLER GROUP, LLC
1. Measure for voltage between the (X290) Amplified Center I/P Speaker (-) circuit and ground.
  Is there any voltage present?

  Yes
  - Repair the (X290) Amplified Center I/P Speaker (-) circuit for a short to voltage.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
  No
  - Replace the Amplifier in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
