Switch - Clutch Starter Interlock
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

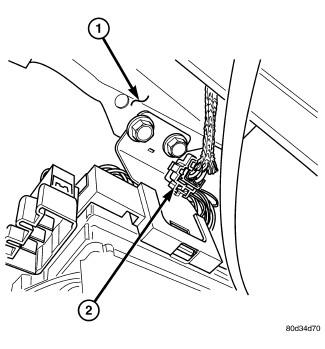

- Disconnect switch 2-wire connector (2) attached to pedal support bracket (1), under instrument panel to left of clutch pedal.
- Check switch continuity with an ohmmeter while operating clutch pedal.
- Pedal Depressed - Continuity
- Pedal Released - No Continuity
- If continuity is not present or always present, replace clutch master cylinder. Switch is not serviced separately.
