Diagnostic Test

WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. TEST FOR INTERMITTENT CONDITION
    NOTE:

    Check for any TSB(s) related to the condition. If a TSB applies, perform the procedure outlined in the TSB before continuing.

    1. Turn the ignition on.
      NOTE:

      Make sure the IOD fuse is installed and battery voltage is between 10.0 and 16.0 volts.

    2. With the scan tool, read the module status.
      NOTE:

      Check the TIPM for any active CAN hardware DTCs, perform DTC before proceeding.

      Does the scan tool indicate that the module is active on the bus?

      Yes

      • The no response condition is not present at this time. Using the wiring diagrams as a guide, check all related splices and connectors for signs of water intrusion, corrosion, pushed out or bent terminals, and correct pin tension.

      No

      • Go To  2.
  2. CHECK THE (A27) FUSED B(+) CIRCUIT FOR AN OPEN OR SHORT

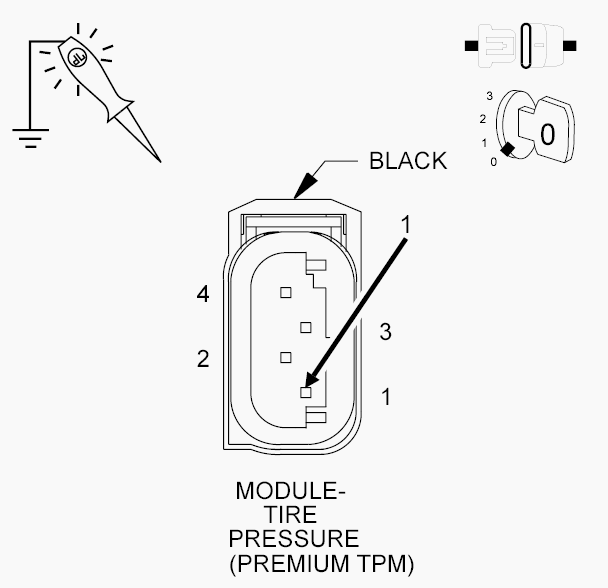

    Fig 1: Checking Fused B(+) Circuit For An Open Or Short
    GC0137502Courtesy of CHRYSLER GROUP, LLC
    1. Turn the ignition off.
    2. Disconnect the Tire Pressure Module harness connector.
    3. Using a 12-volt test light connected to ground, check the (A27) Fused B(+) circuit.

      Does the test light illuminate brightly?

      Yes

      • Go To  3.

      No

      • Repair the open or short in the (A27) Fused B(+) circuit.
      • Refer to STANDARD PROCEDURE and perform the TPM VERIFICATION TEST.
  3. CHECK THE (Z906) GROUND CIRCUIT FOR AN OPEN

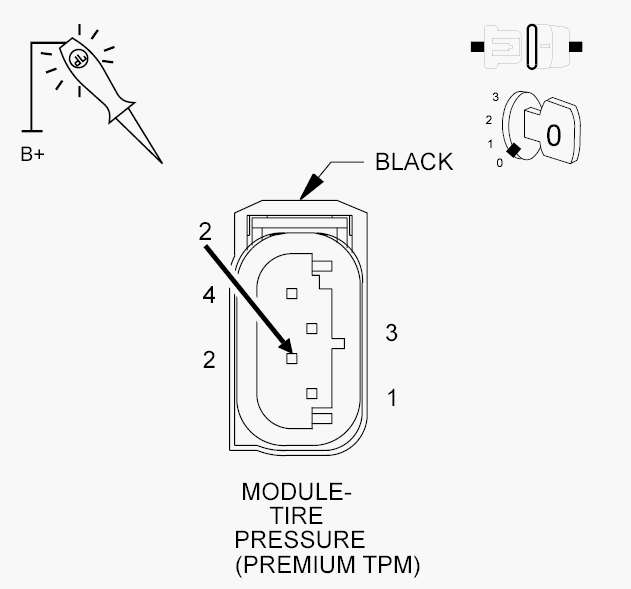

    Fig 2: Checking Ground Circuit For An Open
    GC0137503Courtesy of CHRYSLER GROUP, LLC
    1. Using a 12-volt test light connected to 12-volts, check the (Z906) Ground circuit.

      Does the test light illuminate brightly?

      Yes

      • Go To  4.

      No

      • Repair the open in the (Z906) Ground circuit.
      • Refer to STANDARD PROCEDURE and perform the TPM VERIFICATION TEST.
  4. CHECK THE (D52) CAN C BUS (+) CIRCUIT FOR AN OPEN

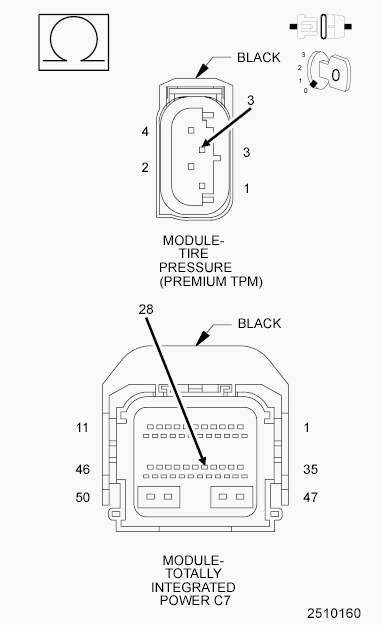

    Fig 3: Checking Can C Bus (+) Circuit For An Open
    GC0137504Courtesy of CHRYSLER GROUP, LLC
    1. Disconnect the TIPM C7 harness connector.
    2. Measure the resistance of the (D52) CAN C Bus (+) circuit between the TIPM C7 harness connector and the Tire Pressure Module harness connector.

      Is resistance below 5.0 Ohms?

      Yes

      • Go To  5.

      No

      • Repair the open in the (D52) CAN C Bus (+) circuit.
      • Refer to STANDARD PROCEDURE and perform the TPM VERIFICATION TEST.
  5. CHECK THE (D51) CAN C BUS (-) CIRCUIT FOR AN OPEN

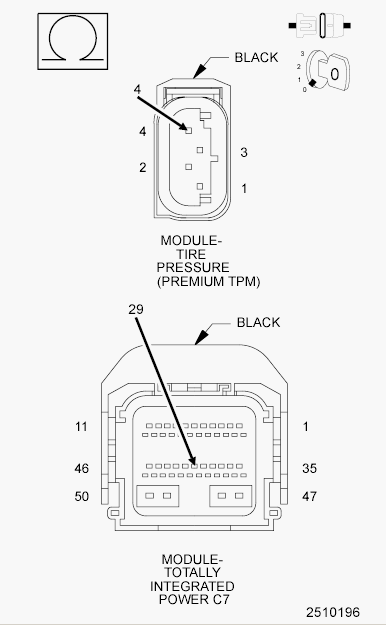

    Fig 4: Checking Can C Bus (-) Circuit For An Open
    GC0137505Courtesy of CHRYSLER GROUP, LLC
    1. Measure the resistance of the (D51) CAN C Bus (-) circuit between the TIPM C7 harness connector and the Tire Pressure Module harness connector.

      Is resistance below 5.0 Ohms?

      Yes

      No

      • Repair the open in the (D51) CAN C Bus (-) circuit.
      • Refer to STANDARD PROCEDURE and perform the TPM VERIFICATION TEST.
