Headliner Mounted Speaker - Quad Cab

WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

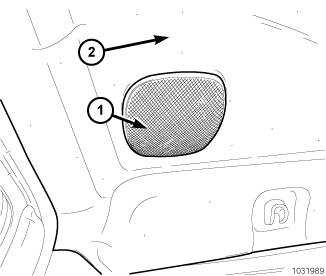

Fig 1: Headliner Mounted Speaker Cover (Quad Cab)
GC0087491Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the battery negative cable.
  2. Using a trim stick, remove the speaker cover (1) from the headliner (2).

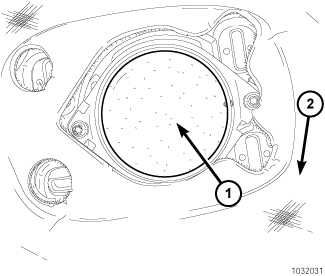

    Fig 2: Headliner Mounted Speaker (Quad Cab)
    GC0087492Courtesy of CHRYSLER GROUP, LLC
  3. Remove the two retainers holding the speaker (1) into the headliner (2).
  4. Disconnect the electrical connector and remove the speaker.
