Subwoofer - Quad Cab

WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

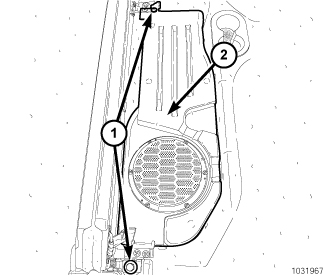

Fig 1: Subwoofer (Quad Cab)
GC0087490Courtesy of CHRYSLER GROUP, LLC
  1. Position the subwoofer to vehicle.
  2. Connect the electrical connector.
  3. Install and tighten the mounting fasteners (1).
  4. Lower the seat.
  5. Connect the battery negative cable.
