Section 138 (Audio And Video (Service Information)): Radio: Installation: Installation
WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

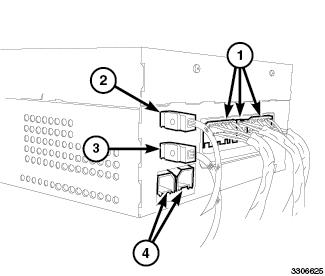

Fig 1: Electrical Connectors, AM/FM Antenna Connectors, Navigation Antenna Connector & USB Connector Port
- Position the new radio near the instrument panel.
- Connect the AM/FM antenna (2) and electrical connectors (1).
- Connect the satellite/navigation antenna (3).
- If equipped, connect the USB connectors (4).
- Seat the radio into the cavity in the instrument panel.
- Install the fasteners securing the radio to the instrument panel. Tighten the fasteners securely.
- Install the instrument panel center bezel. Refer to BEZEL, INSTRUMENT PANEL, CENTER, INSTALLATION .
- Connect the battery negative cable.
- If radio is equipped with an internal hard disk drive (HDD), restore user data from backup. Refer to STANDARD PROCEDURE .
