System, Closed Crankcase Ventilation (CCV): Removal: Removal

WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

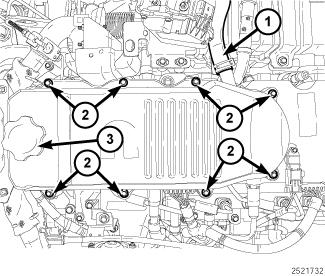

Fig 1: Breather Hose, Oil Fill Cap & Bolts
GC0137178Courtesy of CHRYSLER GROUP, LLC
  1. If equipped, remove the engine cover.
  2. Remove the breather hose (1) from the breather cover.
    CAUTION:

    The use of air tools is not recommended as damage to the component may result.

  3. Remove the oil fill cap (3), the bolts (2) and the breather cover.

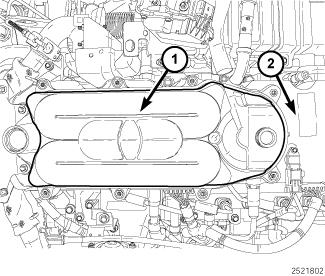

    Fig 2: Breather Element Location
    GC0110282Courtesy of CHRYSLER GROUP, LLC
  4. Remove the breather element (1) from the cylinder head cover (2).
