System, Closed Crankcase Ventilation (CCV): Installation: Installation

WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

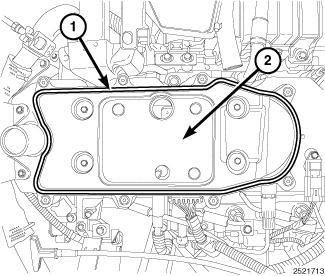

Fig 1: Installing Gasket & Cylinder Head Cover

Courtesy of CHRYSLER GROUP, LLC

Clean the filter sealing surface on the cylinder head cover (2) with a clean shop towel.
Install a new gasket (1) onto the cylinder head cover (2).

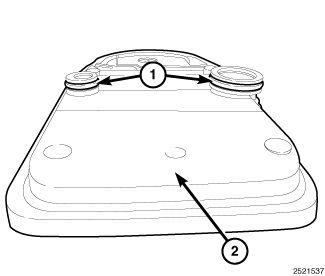

Fig 2: Identifying O-Ring & Breather Element
Courtesy of CHRYSLER GROUP, LLC
Apply clean engine oil to the two bottom O-ring (1) on the breather element (2) and install the new breather element onto the cylinder head cover.

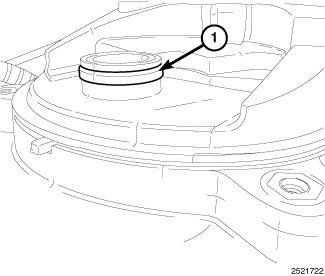

Fig 3: Identifying O-Ring
Courtesy of CHRYSLER GROUP, LLC
Apply clean engine oil to the top O-ring (1) on the breather element (2).

Fig 4: Breather Hose, Oil Fill Cap & Bolts
Courtesy of CHRYSLER GROUP, LLC

CAUTION:
The use of air tools is not recommended as damage to the component may result.
Install the breather cover and the oil fill cap (3). Tighten bolts (2) to 10 N.m (89 in. lbs.).
Install the breather hose (1) onto the breather cover.
If equipped, install engine covers.
