Gasket, Oil Pan: Removal: Removal

WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Battery Cables
GC0083455Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect the battery cables (1, 3).
    Fig 2: Air Cleaner Housing
    GC0108070Courtesy of CHRYSLER GROUP, LLC
  2. Remove the intake air assembly.
  3. Remove the inner radiator shroud retaining bolts.
  4. Remove the inner radiator shroud.
  5. Raise and support the vehicle.

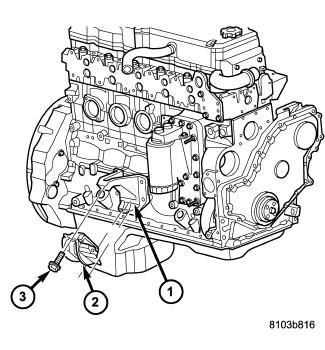

    Fig 3: Mount, Insulator & Bolt
    GC0108582Courtesy of CHRYSLER GROUP, LLC
    1 - Mount
    2 - Insulator
    3 - Bolt
  6. Remove the front suspension track bar. Refer to TRACK BAR, FRONT, REMOVAL .
  7. Remove the right and left engine mount through bolt. Refer to INSULATOR, ENGINE MOUNT, FRONT, REMOVAL, 6.7L  and INSULATOR, ENGINE MOUNT, REAR, REMOVAL, 6.7L .
  8. Remove the steering gear retaining bolts. Refer to GEAR, INDEPENDENT FRONT SUSPENSION, INSTALLATION and GEAR, LINK AND COIL, INSTALLATION .

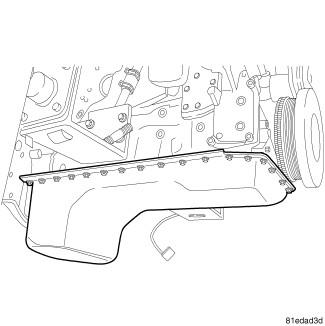

    Fig 4: Oil Pan
    GC0108404Courtesy of CHRYSLER GROUP, LLC
  9. Drain the engine oil.
  10. Lower the vehicle.
  11. Install the engine lift fixture.
  12. Use the engine lift fixture to raise the engine.
  13. Raise the vehicle on the hoist.
  14. Remove the oil pan retaining bolts.
  15. Lower the oil pan enough to allow the removal of the oil pan gasket.
  16. Remove the oil pan gasket.
