Tappet(S), Valve: Removal: Removal

WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

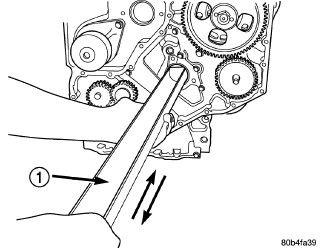

Fig 1: Inserting The Trough Into Camshaft Bore

Courtesy of CHRYSLER GROUP, LLC

1 - TROUGH

NOTE:

This procedure requires use of Miller Tool (special tool #8502, Remover/Installer) Tappet Replacement Kit.

Remove camshaft. Refer to CAMSHAFT, ENGINE, REMOVAL, 6.7L .
Insert the trough (1) (provided with tool kit) the full length of the camshaft bore. Make sure the cap end goes in first and the open side faces up (towards tappets).

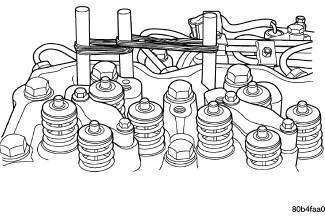

Fig 2: Tappets Secured In Place Using Wooden Dowel Rods
Courtesy of CHRYSLER GROUP, LLC
Remove only one tappet at a time. Remove rubber band from one cylinder pair and attach tappet dowel not being removed to the next cylinder pair.

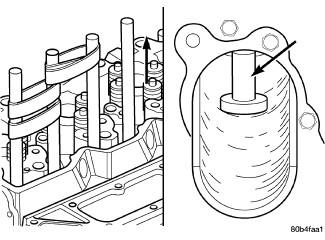

Fig 3: Lift Dowel Rod To Disengage From Tappet
Courtesy of CHRYSLER GROUP, LLC
Raise dowel rod (disengage from tappet) and allow tappet to fall into trough.
Carefully remove trough (do not rotate) and tappet. If the tappet is not being replaced, mark it so it can be installed in its original location.

Fig 4: Inserting The Trough Into Camshaft Bore
Courtesy of CHRYSLER GROUP, LLC

1 - TROUGH
Re-install trough (1) and repeat procedure on remaining tappets.
