Air Cleaner: Installation: Installation

WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

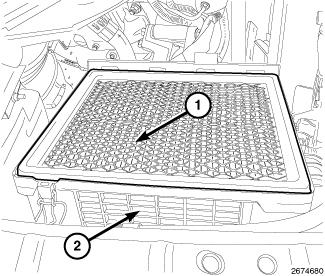

Fig 1: Air Cleaner Housing & Filter

Courtesy of CHRYSLER GROUP, LLC

Clean out the inside of air cleaner housing (2).
Install the new air filter element. Make sure the air filter element is fully seated in housing.

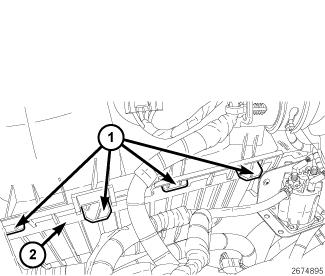

Fig 2: Air Cleaner Cover Alignment Tabs & Housing Slots
Courtesy of CHRYSLER GROUP, LLC
Position air cleaner cover alignment tabs (1) into the housing slots (2) in all four locations and make sure the air cleaner cover is properly seated.

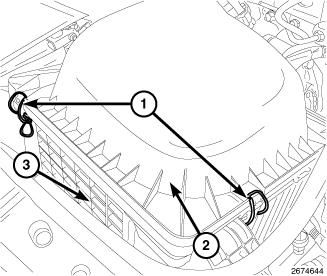

Fig 3: Air Cleaner Housing & Clips
Courtesy of CHRYSLER GROUP, LLC
Latch the over center clips (1)) to clamp air cleaner cover (2).
