Cylinder Head: Removal: Removal

WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

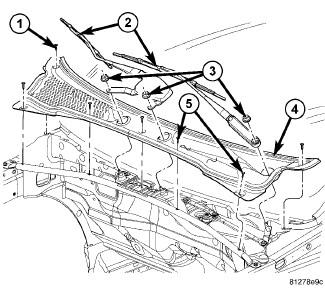

Fig 1: Wipers, Cowl Grille, Push-Pins & Fasteners

Courtesy of CHRYSLER GROUP, LLC

Remove the cowl grille (4).

Fig 2: Engine Cover
Courtesy of CHRYSLER GROUP, LLC
Remove the engine cover (1). Refer to COVER, ENGINE, INSTALLATION, 5.7L .
Perform the Fuel System Pressure Release procedure. Refer to FUEL SYSTEM PRESSURE RELEASE .
Disconnect the fuel supply line. Refer to STANDARD PROCEDURE - QUICK-CONNECT FITTINGS .

Fig 3: Battery & Cables
Courtesy of CHRYSLER GROUP, LLC
Disconnect and isolate the negative battery cable (2).
Drain the cooling system. Refer to STANDARD PROCEDURE .
Remove the air cleaner assembly. Refer to BODY, AIR CLEANER, REMOVAL, 5.7L .
Remove closed crankcase ventilation system.

Fig 4: Oxygen Sensor, Oxygen Sensor Connector, Ball Flange Nut & LH Catalytic Converter
Courtesy of CHRYSLER GROUP, LLC

CAUTION:
When servicing or replacing exhaust system components, disconnect the oxygen sensor connector(s). Allowing the exhaust to hang by the oxygen sensor wires will damage the harness and/or sensor.
Disconnect the oxygen sensor connectors (2).
Saturate all exhaust bolts and nuts with Mopar® Rust Penetrant. Allow 5 minutes for penetration.
NOTE:
If separating the exhaust pipe/catalytic converter at the exhaust manifold flange. New bolts will be required.
Remove the exhaust pipe to manifold bolts (3) (left side shown in illustration, right side similar) and disconnect the front exhaust pipe/catalytic converter assembly (4). Discard the nuts and bolts.
Disconnect the evaporation control system.

Fig 5: Lower Radiator Hose & Heater Hoses
Courtesy of CHRYSLER GROUP, LLC
Disconnect the heater hoses (2).

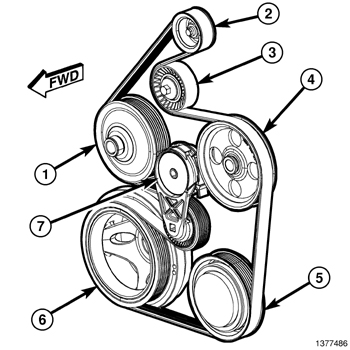

Fig 6: Accessory Drive Belt, Tensioner & Pulleys
Courtesy of CHRYSLER GROUP, LLC

CAUTION:
Do not let the tensioner arm snap back to the free arm position, sever damage may occur to the tensioner.
Insert a suitable square drive ratchet into the square hole on belt tensioner arm (7).
Release the belt tension by rotating the tensioner arm (7)clockwise . Rotate the belt tensioner arm (7) until the belt can be removed from the pulleys.
Remove the accessory drive belt.
Gently release the tensioner arm (7).

Fig 7: Power Steering Pump & Bolts
Courtesy of CHRYSLER GROUP, LLC

NOTE:
It is not necessary to disconnect the hoses from the power steering pump, for power steering pump removal.
Remove the three power steering pump (1) mounting bolts (2) through the access holes in the pulley and secure out of the way.

Fig 8: Cylinder Head Cover Removal/Tightening Sequence
Courtesy of CHRYSLER GROUP, LLC
Remove the cylinder head covers and gaskets. Refer to COVER(S), CYLINDER HEAD, REMOVAL, 5.7L .

Fig 9: Rocker Shafts Retaining Bolt Removal & Tightening Sequence
Courtesy of CHRYSLER GROUP, LLC
Remove the intake manifold and throttle body as an assembly. Refer to MANIFOLD, INTAKE, REMOVAL, 5.7L .
CAUTION:
Rocker arm assemblies and pushrods must be installed in their original locations or engine damage could result.
Identify the original locations for assembly, remove rocker arm assemblies and pushrods. Refer to ROCKER ARM, VALVE, REMOVAL, 5.7L .

Fig 10: Cylinder Head Bolt Removal & Tightening Sequence
Courtesy of CHRYSLER GROUP, LLC
Using the sequence shown in illustration, remove the head bolts from each cylinder head. Remove the cylinder head and discard the cylinder head gasket.
