Body, Air Cleaner: Removal: Removal

WARNING: This page is about a different car, the 2012 RAM Pickup. However, it is still accessible from the selected car via links, so may be relevant.

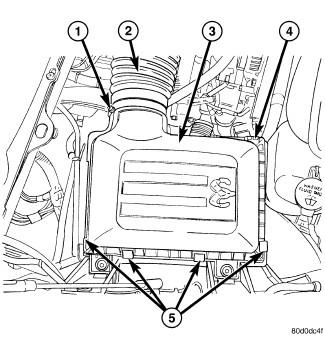

Fig 1: Air Cleaner Housing Cover, Air Duct & Fasteners
GC0083517Courtesy of CHRYSLER GROUP, LLC
  1. Loosen clamp (1) and disconnect air duct (2) at air cleaner cover (3).

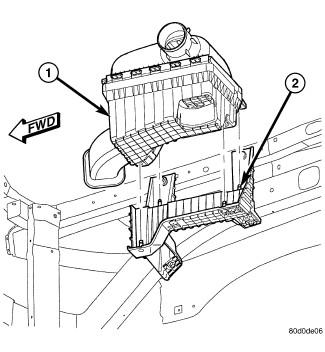

    Fig 2: Air Cleaner Housing Assembly
    GC0083518Courtesy of CHRYSLER GROUP, LLC
  2. Lift entire housing (1) assembly from 4 locating pins (2).
