Seal, Crankshaft Oil, Front: Removal: Removal

WARNING: This page is about a different car, the 2012 RAM Pickup. However, it is still accessible from the selected car via links, so may be relevant.

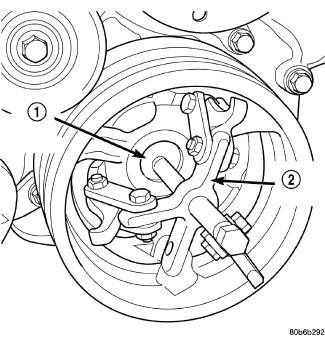

Fig 1: Removing Crankshaft Damper
GC0082859Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect negative cable from battery.
  2. Remove accessory drive belt. Refer to BELT, SERPENTINE, REMOVAL .
  3. Remove A/C compressor mounting fasteners and set compressor aside.
  4. Drain cooling system. Refer to STANDARD PROCEDURE .
  5. Remove upper radiator hose.
  6. Disconnect electrical connector for fan mounted inside radiator shroud.
  7. Remove radiator shroud attaching fasteners.
    NOTE:

    Transmission cooler line snaps into shroud lower right hand corner.

  8. Remove radiator cooling fan and shroud. Refer to FAN, COOLING, ELECTRIC, REMOVAL and FAN, COOLING, VISCOUS, REMOVAL .
  9. Remove crankshaft damper bolt.
  10. Remove damper using Crankshaft Insert (special tool #8513A, Insert, Crankshaft) (1) and (special tool #1023, Puller) Three Jaw Puller (2).

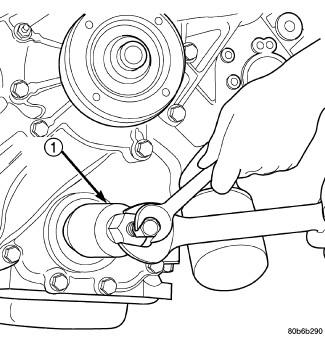

    Fig 2: Removing Crankshaft Front Oil Seal
    GC0082860Courtesy of CHRYSLER GROUP, LLC
  11. Using Crankshaft Front Seal Remover (special tool #8511, Remover, Seal) (1), remove crankshaft front seal.
