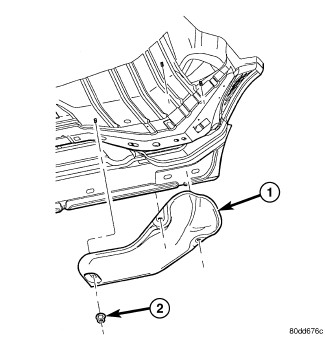

Fig 1: Heat Shield LH
Courtesy of CHRYSLER GROUP, LLC
1 - HEAT SHIELD
2 - NUT
Position the exhaust heat shield (1) to the floor pan, crossmember or bracket and install the nuts (2) or bolts.

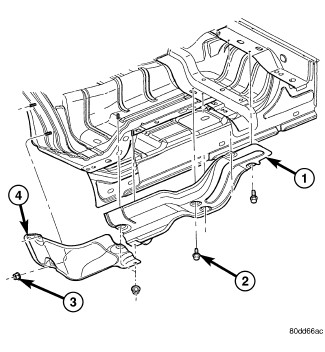

Fig 2: Heat Shields - RH - Quad Cab
Courtesy of CHRYSLER GROUP, LLC
1 - HEAT SHIELD
2 - FASTENER
3 - NUT
4 - HEAT SHIELD
Tighten the nuts (3) and bolts (2) to 11 N.m (97 in. lbs.).
