Puddle Lamp
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate the battery negative cable.

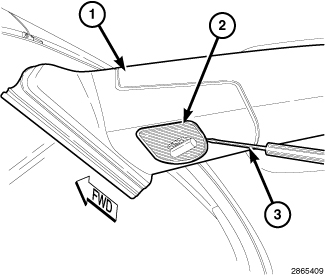

- Using a small flat-bladed screw driver (3), carefully pry between the outboard side of the puddle lamp lens (2) and the underside of the fixed (door) half of the mirror arm (1) to unsnap the lamp from the arm.

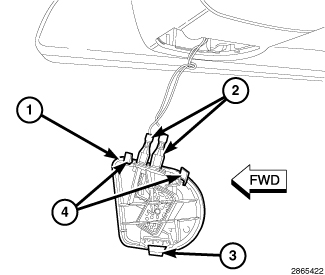

- Disengage the two hooks (4) on the inboard side of the puddle lamp (1) from the inboard side of the lamp opening in the mirror arm.
- Pull the lamp away from the mirror arm far enough to access and disconnect the two mirror wire harness connectors (2) from the two terminals of the puddle lamp.
- Remove the puddle lamp from the mirror.
