Sensor, Exhaust Temperature: Description: Description
WARNING: This page is about a different car, the 2016 RAM 3500 HD and 2016 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

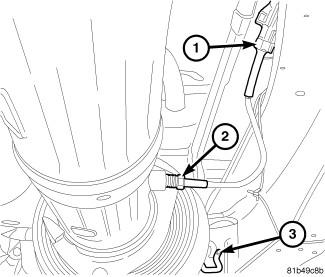

The Diesel Exhaust Temperature Sensors (2) are thermistors and change resistance based on the temperature being measured. The Powertrain Control Module (PCM) provides a 5 volt reference voltage to the sensor. The PCM monitors the change in signal voltage and converts this to a temperature value.
For 2013 there are five exhaust temperature sensors:
- Exhaust Temperature Sensor (T1) is located in the front exhaust pipe.
- Exhaust Temperature Sensor (T2) is located in rear of the Diesel Oxygen Catalyst (DOC).
- Exhaust Temperature Sensor (T3) is located at the rear of Diesel Particulate Filter (DPF).
- Exhaust Temperature Sensor (T4) is located in the center of the Selective Reduction Catalyst (SCR) near the ammonia sensor.
- Exhaust Temperature Sensor (T5) is located at rear of the SCR.
