Gauge Pack, Instrument Cluster: Description: Description: Notes

WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

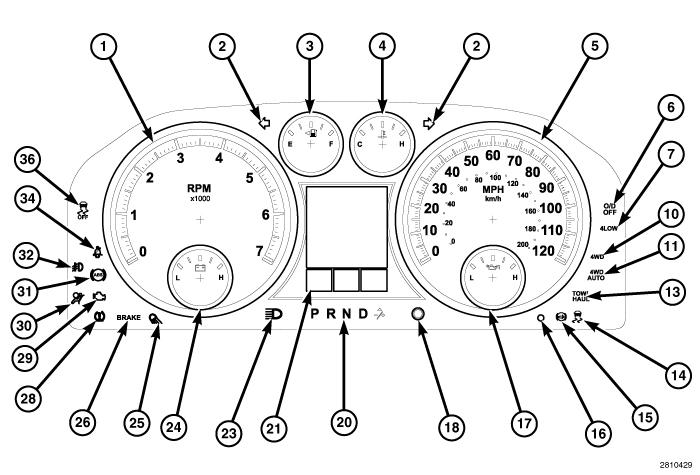

Fig 1: SLT Cluster (Gasoline and Diesel)

Courtesy of CHRYSLER GROUP, LLC

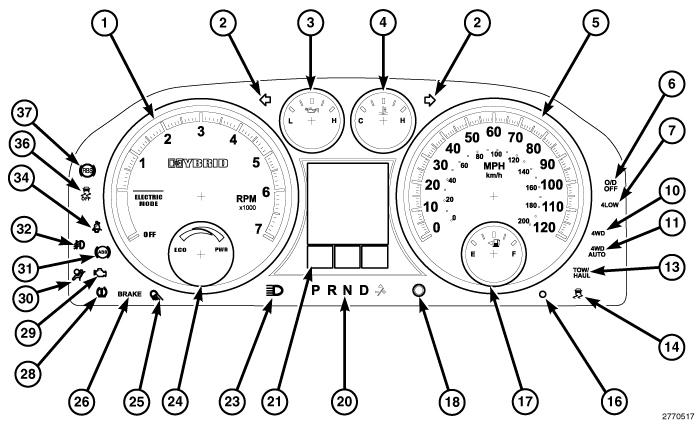

Fig 2: HEV Cluster

Courtesy of CHRYSLER GROUP, LLC

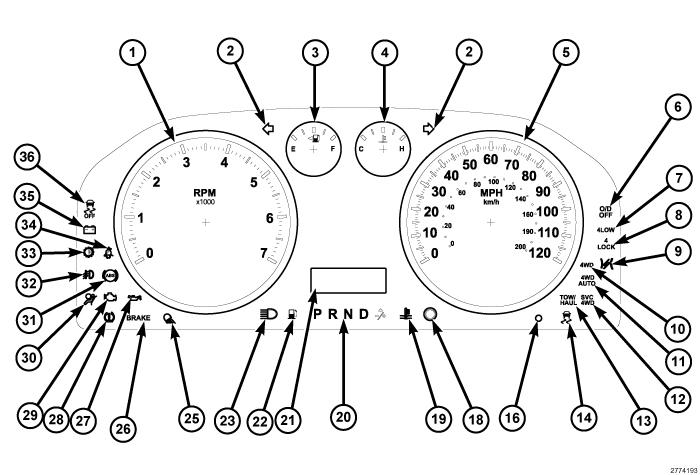

Fig 3: SL Cluster (Gasoline Only)

Courtesy of CHRYSLER GROUP, LLC

The instrument cluster includes the following analog gauges:

Engine Temperature Gauge (4)
Fuel Gauge (3) (17) - On HEV vehicles the fuel gauge is located within the speedometer.
Oil Pressure Gauge (17) (3) - All except base models. On HEV vehicles the oil pressure gauge is located next to the engine temperature gauge.
Speedometer (5)
Tachometer (1)
Voltage Gauge (24) - All except base models.
Power Gauge (24) - Hybrid Electric Vehicle (HEV) only.

Gauges are illuminated by LEDs that are soldered onto the CCN electronic circuit board. Cluster illumination is accomplished by dimmable LEDs soldered onto the CCN electronic circuit, which illuminate each of the gauges for visibility when the exterior lighting is turned ON. The gauges and LED units are not available for service replacement, and if damaged or inoperative, the entire CCN must be replaced.
