Input Speed Sensor

WARNING: This page is about a different car, the 2016 RAM 3500 HD. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle.

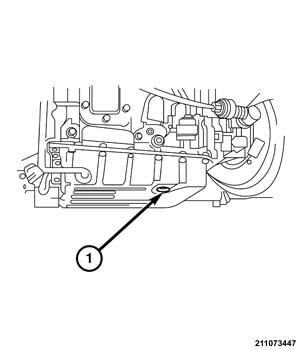

Fig 1: Removing Transmission Oil Pan Drain Plug
Courtesy of CHRYSLER GROUP, LLC
Place a suitable fluid catch pan under the transmission.
Remove the drain plug (1) and drain the transmission fluid from the transmission oil pan.
Remove the valve body. Refer to VALVE BODY, REMOVAL .

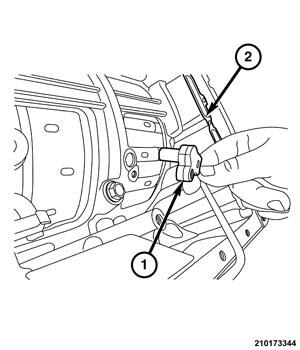

Fig 2: Removing/Installing Input Speed Sensor
Courtesy of CHRYSLER GROUP, LLC
Remove the input speed sensor (1) from the transmission case (2).
