P2 Planetary Gear Set
WARNING: This page is about a different car, the 2016 RAM 3500 HD. However, it is still accessible from the selected car via links, so may be relevant.

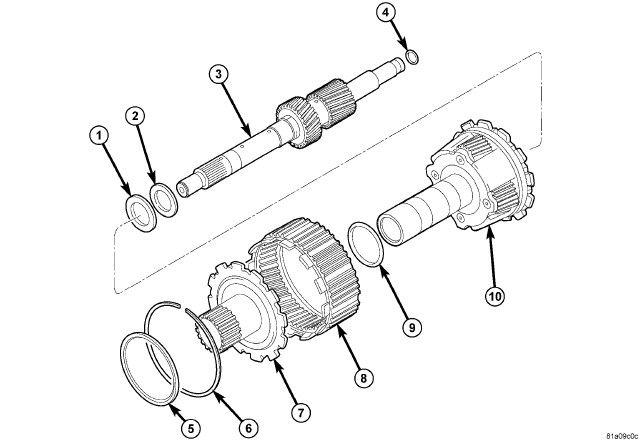

| 1 - THRUST BEARING RACE |
| 2 - THRUST BEARING |
| 3 - SUN GEAR SHAFT |
| 4 - OIL SEAL RING |
| 5 - THRUST BEARING |
| 6 - SNAP RING |
| 7 - P2 HUB |
| 8 - ANNULUS GEAR |
| 9 - THRUST BEARING |
| 10 - P2 PLANETARY GEAR |
- Remove the P2 planetary gear (10), thrust bearing race (1), thrust bearing (2) and ring gear assembly from the sun gear shaft (3).
- Remove the ring gear assembly and thrust bearings (5), (9) from the P2 planetary gear (10).
- Remove the snap ring (6) from the ring gear (8).
- Separate the P1 hub (7) from the ring gear (8).
