Thrust Bearing Orientation

WARNING: This page is about a different car, the 2016 RAM 3500 HD. However, it is still accessible from the selected car via links, so may be relevant.

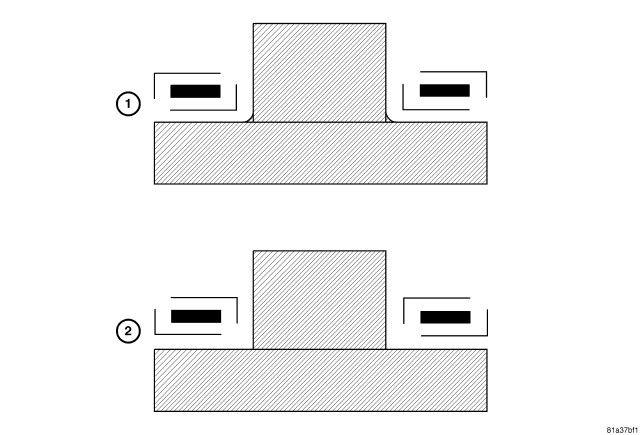

Fig 1: Thrust Bearing Orientation

Courtesy of CHRYSLER GROUP, LLC

1 - CORRECT INSTALLATION

2 - INCORRECT INSTALLATION

CAUTION:

A thrust bearing must be installed correctly. Failure to heed this caution will result in transmission failure.

When installing a thrust bearing, be certain the rolled surface (outer race) of the thrust bearing contacts the rolled surface of the component.
