Clutch, 2: Disassembly: Disassembly

WARNING: This page is about a different car, the 2016 RAM 3500 HD. However, it is still accessible from the selected car via links, so may be relevant.

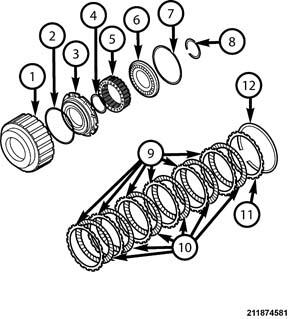

Fig 1: Identifying K2 Clutch Assembly Components

Courtesy of CHRYSLER GROUP, LLC

1 - CLUTCH RETAINER

2 - D-RING

3 - PISTON

4 - D-RING

5 - PISTON RETURN SPRING

6 - BALANCE PISTON

7 - O-RING

8 - SNAP RING

9 - PLATE

10 - DISC

11 - REACTION PLATE

12 - SNAP RING

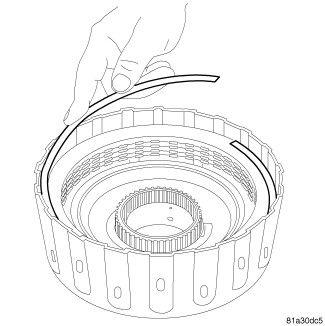

Fig 2: K2 Clutch Pack Snap Ring

Courtesy of CHRYSLER GROUP, LLC

Remove the K2 clutch pack snap ring.

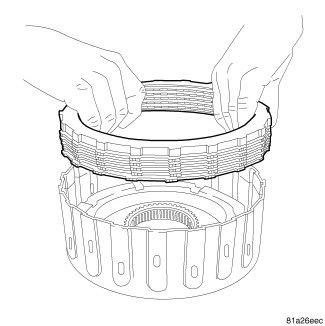

Fig 3: K2 Clutch Pack
Courtesy of CHRYSLER GROUP, LLC
Remove the K2 clutch pack from the K2 clutch retainer.

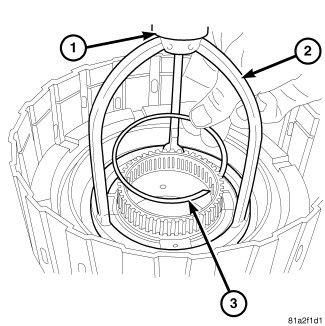

Fig 4: K2 Piston Snap Ring
Courtesy of CHRYSLER GROUP, LLC
Using an arbor press (1) and Compressor tool (special tool #5059-A, Compressor, Spring) (2), compress the K2 clutch piston assembly and remove the snap ring (3) using snap ring pliers.

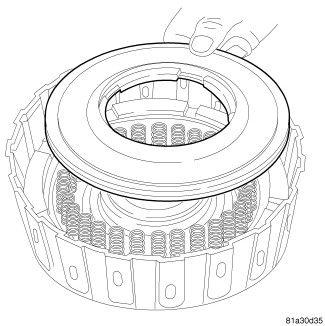

Fig 5: K2 Balance Piston
Courtesy of CHRYSLER GROUP, LLC
Remove the K2 clutch balance piston.

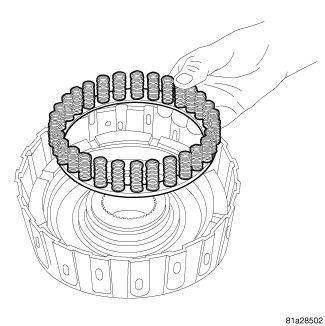

Fig 6: K2 Return Spring
Courtesy of CHRYSLER GROUP, LLC
Remove the K2 clutch piston return spring.

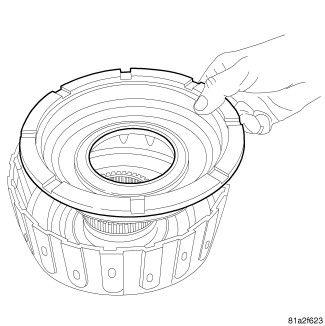

Fig 7: K2 Piston
Courtesy of CHRYSLER GROUP, LLC
Remove the K2 clutch piston.
