Diesel Engines
WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
| 1 - TRANSMISSION WATER-TO-OIL COOLER |
All diesel models equipped with an automatic transmission are equipped with both a main water-to-oil cooler and a separate air-to-oil cooler. Both coolers are supplied as standard equipment on diesel engine powered models when equipped with an automatic transmission.

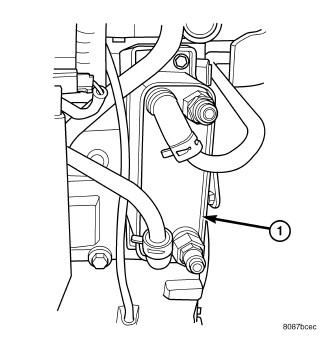

The main water-to-oil transmission oil cooler is mounted to a bracket on the intake side of the engine. Refer to Fig 1.
| 1 - MOUNTING BOLTS |
| 2 - THERMOSTATIC BYPASS VALVE |
| 3 - RADIATOR |
| 4 - QUICK-CONNECT FITTINGS |
| 5 - TRANSMISSION OIL COOLER |
The air-to-oil cooler is located in front of the radiator. Refer to Fig 2.
