P0706-00-Transmission Range Sensor Performance: Notes

WARNING: This page is about a different car, the 2016 RAM 3500 HD. However, it is still accessible from the selected car via links, so may be relevant.

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .

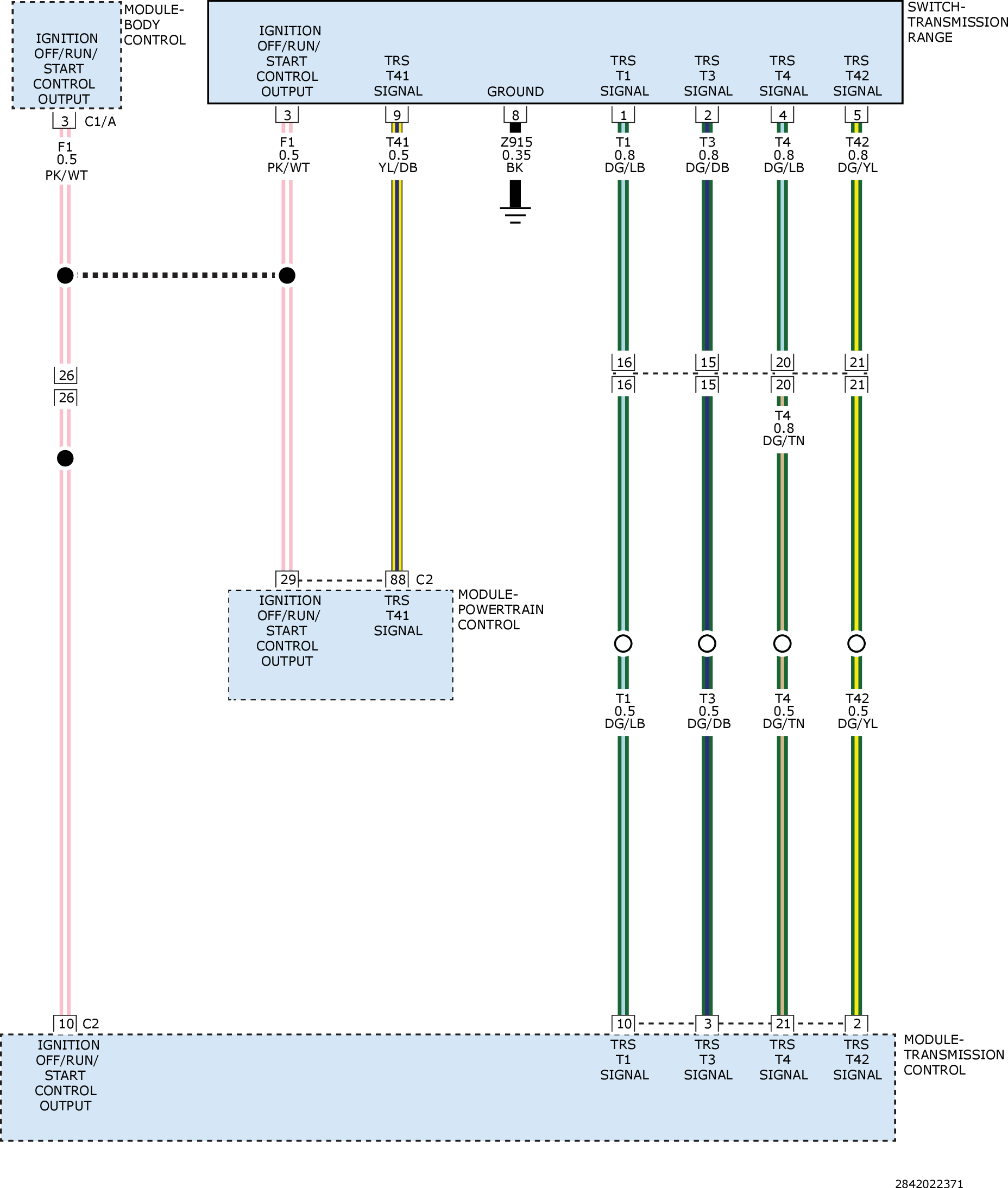

Fig 1: Transmission Range Sensor Circuit Diagram
GC0161690Courtesy of CHRYSLER GROUP, LLC
