Rear Seat Air Outlets

WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

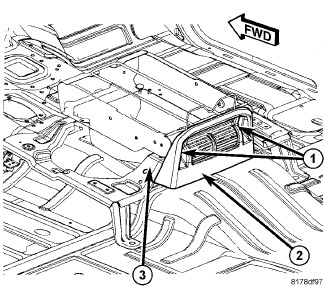

Fig 1: Rear Air Outlet Housing

Courtesy of CHRYSLER GROUP, LLC

NOTE:

Illustration shown with front seat cushions removed for clarity.

Remove the two screws (1) that secure the rear air outlet housing (2) to the rear of the front center seat support (3).
Remove the rear air outlet housing and place it on a workbench.

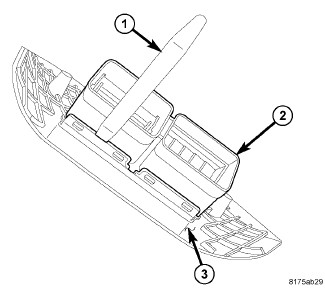

Fig 2: Removing Rear Air Outlets
Courtesy of CHRYSLER GROUP, LLC
Using Tim Stick (special tool #C-4755, Trim Stick) or equivalent (1), disengage the retaining tabs that secure the rear air outlets (2) to the rear air outlet housing (3) and gently pry the outlets from the housing (3).
