Rocker Arms

WARNING: This page is about a different car, the 2016 RAM 3500 HD and 2016 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Measuring Rocker Arm Bore

Courtesy of CHRYSLER GROUP, LLC

MEASURING ROCKER ARM BORE

DESCRIPTION	SPECIFICATION
DESCRIPTION	Metric	Standard
ROCKER ARM BORE (MAX.)	22.027 mm	0.867 in.

Measure the rocker arm bore (2) for signs of wear and replace rocker arm if necessary.

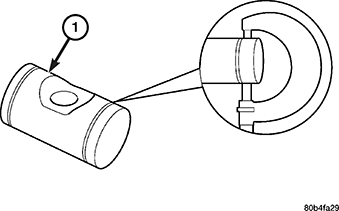

Fig 2: Measuring Rocker Arm Shaft

Courtesy of CHRYSLER GROUP, LLC

MEASURING ROCKER ARM SHAFT

DESCRIPTION	SPECIFICATION
DESCRIPTION	Metric	Standard
ROCKER ARM SHAFT (MIN.)	21.965 mm	0.865 in.

Remove the rocker shaft (1) and inspect for cracks and excessive wear in the bore and shaft. Remove the socket and inspect ball insert and socket for signs of wear. Replace the retainer if necessary.
