Standard Procedure - Drain And Fill: Fill
WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of CHRYSLER GROUP, LLC

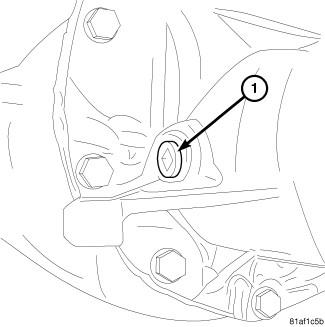

- Remove fill plug (1) from the right side of the carrier.
- With axle level, fill carrier with lubricant to the bottom of the fill plug hole.
- Install fill plug (1) and tighten to 68 N.m (50 ft. lbs.).
