Case Assembly, Differential: Disassembly: Disassembly

WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

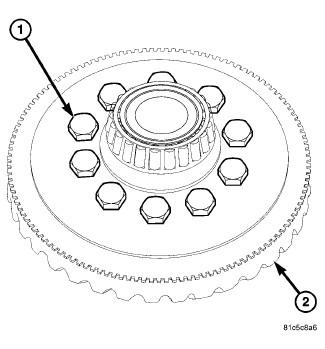

Fig 1: Ring Gear & Bolts

Courtesy of CHRYSLER GROUP, LLC

Remove ring gear bolts (1) from ring gear (2).
Separate ring gear from differential case and remove case dowel pins.

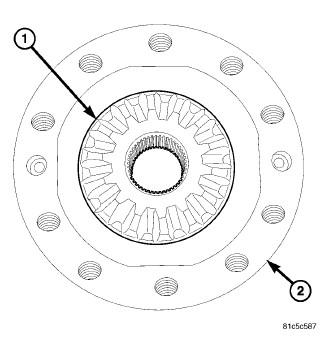

Fig 2: Side Gear & Differential Case
Courtesy of CHRYSLER GROUP, LLC
Remove side gear (1) from differential case (2).

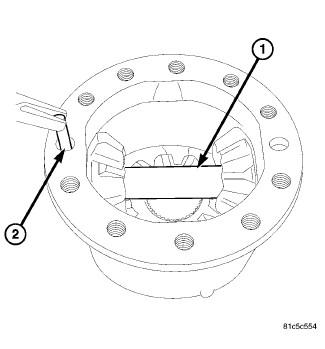

Fig 3: Pinion Mate Shaft & Pins
Courtesy of CHRYSLER GROUP, LLC
Remove pinion mate shaft (1) pins (2) from differential case.

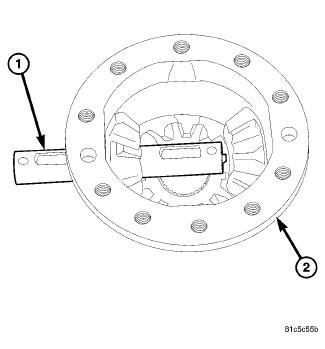

Fig 4: Pinion Mate Shaft & Differential Case
Courtesy of CHRYSLER GROUP, LLC
Remove pinion mate shaft (1) from differential case (2).

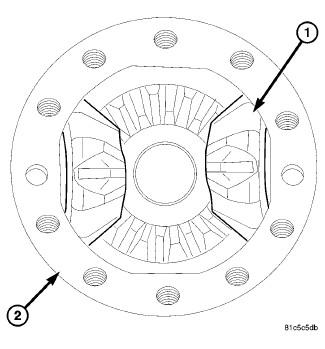

Fig 5: 1st Pinion Gear
Courtesy of CHRYSLER GROUP, LLC
Remove first pinion gear (1) with thrust washer from differential case (2).

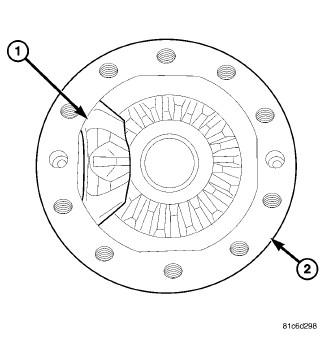

Fig 6: 2nd Pinion Gear
Courtesy of CHRYSLER GROUP, LLC
Remove second pinion gear (1) with thrust washer from differential case (2).

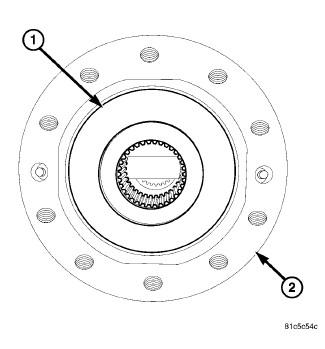

Fig 7: Bottom Side Gear
Courtesy of CHRYSLER GROUP, LLC
Remove remaining side gear (1) from differential case (2).

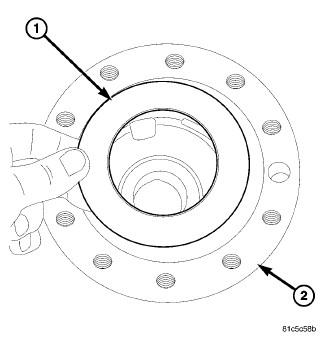

Fig 8: Side Gear Thrust Washer & Differential Case
Courtesy of CHRYSLER GROUP, LLC
Remove side gear thrust washer (1) from differential case (2).
