Gear Identification
WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

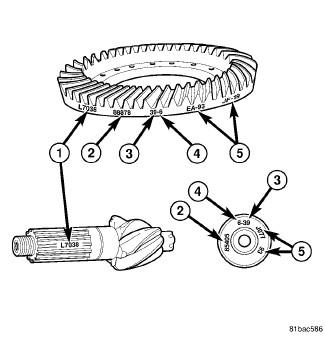

Ring and pinion gears are matched parts and must be replaced as a set. Gear identification numbers are stamped on to both gears.
- Matched Gear Set Number - (1)
- Part Number - (2)
- Ring Gear Teeth - (3)
- Pinion Teeth - (4)
- Manufacturing Number - (5)
